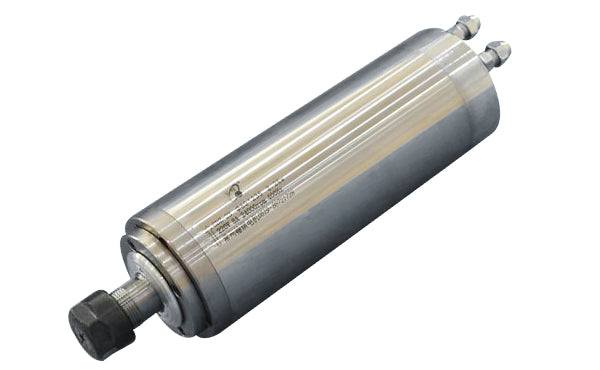

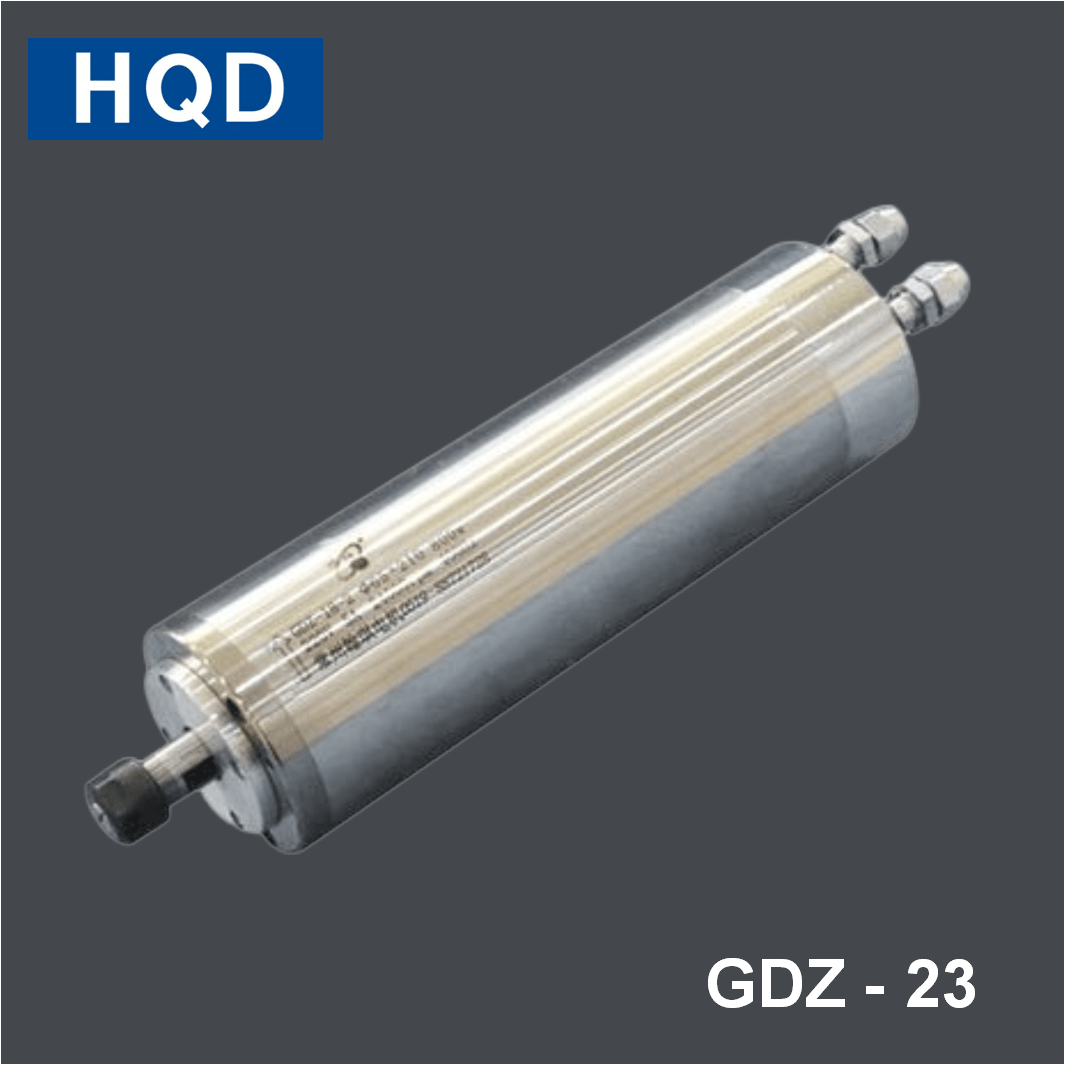

HQD GDZ Advertising Woodworking Spindle GDZ-23

Specifications of HQD GDZ Advertising Woodworking Spindle GDZ-23 are:

Overall dimensions: Φ80*235Φm/m
Rotating speed: 24000RPM
Rated power: 2.2KW
Voltage: 220V
Current: 8A
Frequency: 400HZ
Bearing: 7005C/P4*2,6002C/P4*2
Chuck: ER20
Cooling method: Self-cooling
Lubrication method: Grease
Number of phases: 3

Download Outline Diagram for HQD GDZ Ultrasonic Electric Spindle GDZ-23
