Bochu MCD100 Manual Center Device

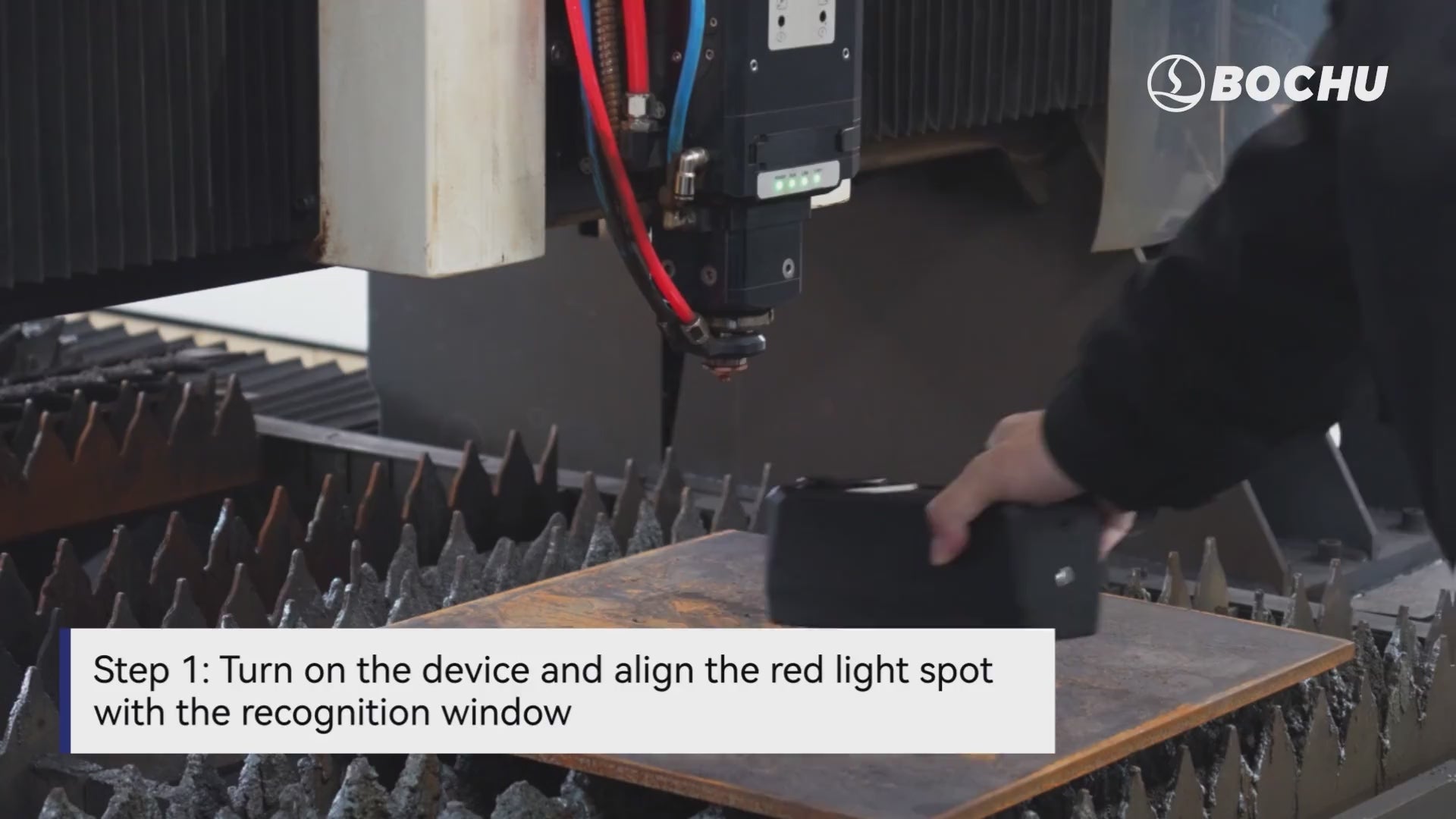

With high-precision image sensors and professional optical components, Bochu MCD100 Centering Device achieves centering in three simple steps:Align, Follow, Adjust. By replacing manual operations, MCD100 delivers remarkable improvements in both positioning accuracy and operational efficiency.

• Integrated Design:  No reliance on mobile phones, no network interference. Meets the stability requirements for industrial sites.
• Automatic Calibration Workflow:  Not just clear vision, but precise calculation.
• High-precision Algorithm Advantages: Not just clear vision, but precise calculation.

Recognition Performance:

• Resolution: 1920 x 1200
• Following Height: 1 mm
• Repeatability Precision: ≤ 0.02 mm
• Absolute Accuracy: ≤ 0.05 mm

Electrical Specifications

• Power Supply Method: 21700 battery
• Charging Method: USB, adapter
• Battery Capacity: 4500mAh@0.2C
• Power Consumption: <4 W @ 4.2 V DC

Structure

• Dimension: 180 mm × 80 mm × 82.5 mm
• Screen Size: 4.5 inches
• Weight: About 1 kg
• Protection Level: IP64
• Operating Temperature: 0°C — 60°C
• Ambient Humidity: 0% to 70% RH, non-condensing
