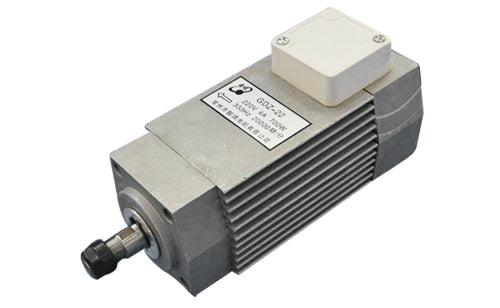

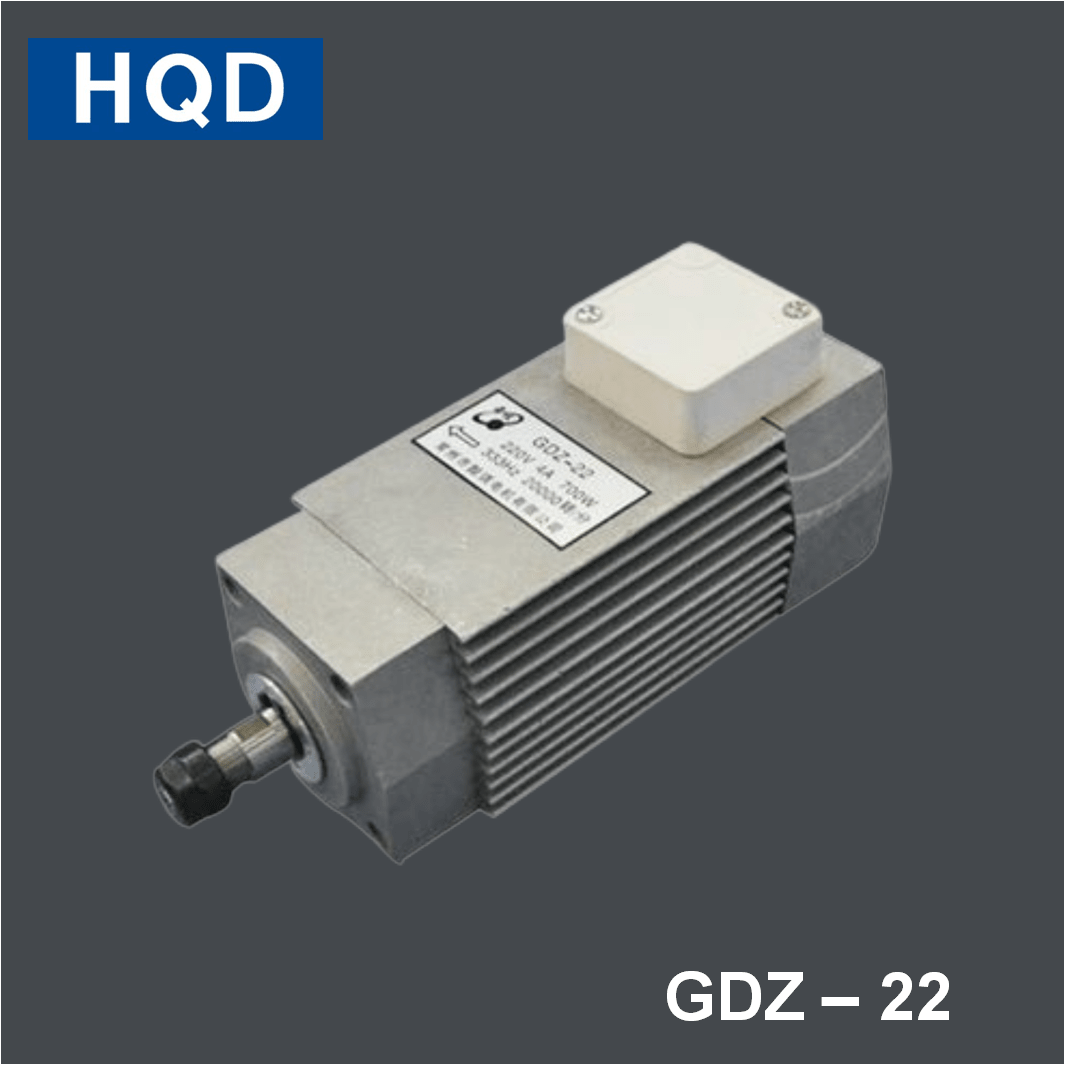

HQD GDZ Advertising Woodworking Spindle GDZ-22

Specifications of HQD GDZ Advertising Woodworking Spindle GDZ-22 are:

Rotating speed: 18000RPM
Rated power: 7.5KW
Torque: 3.98Nm
Voltage: 380V
Current: 15.0A
Frequency: 300HZ
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7008C P4,2*7004C P4
Weight: 16Kg

Download Outline Diagram for HQD GDZ Ultrasonic Electric Spindle GDZ-22
