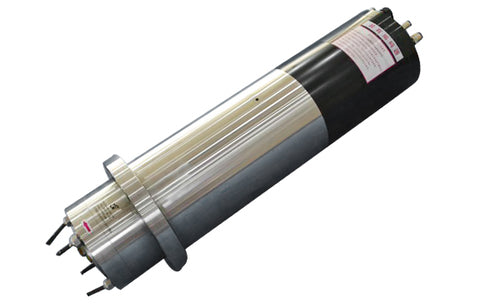

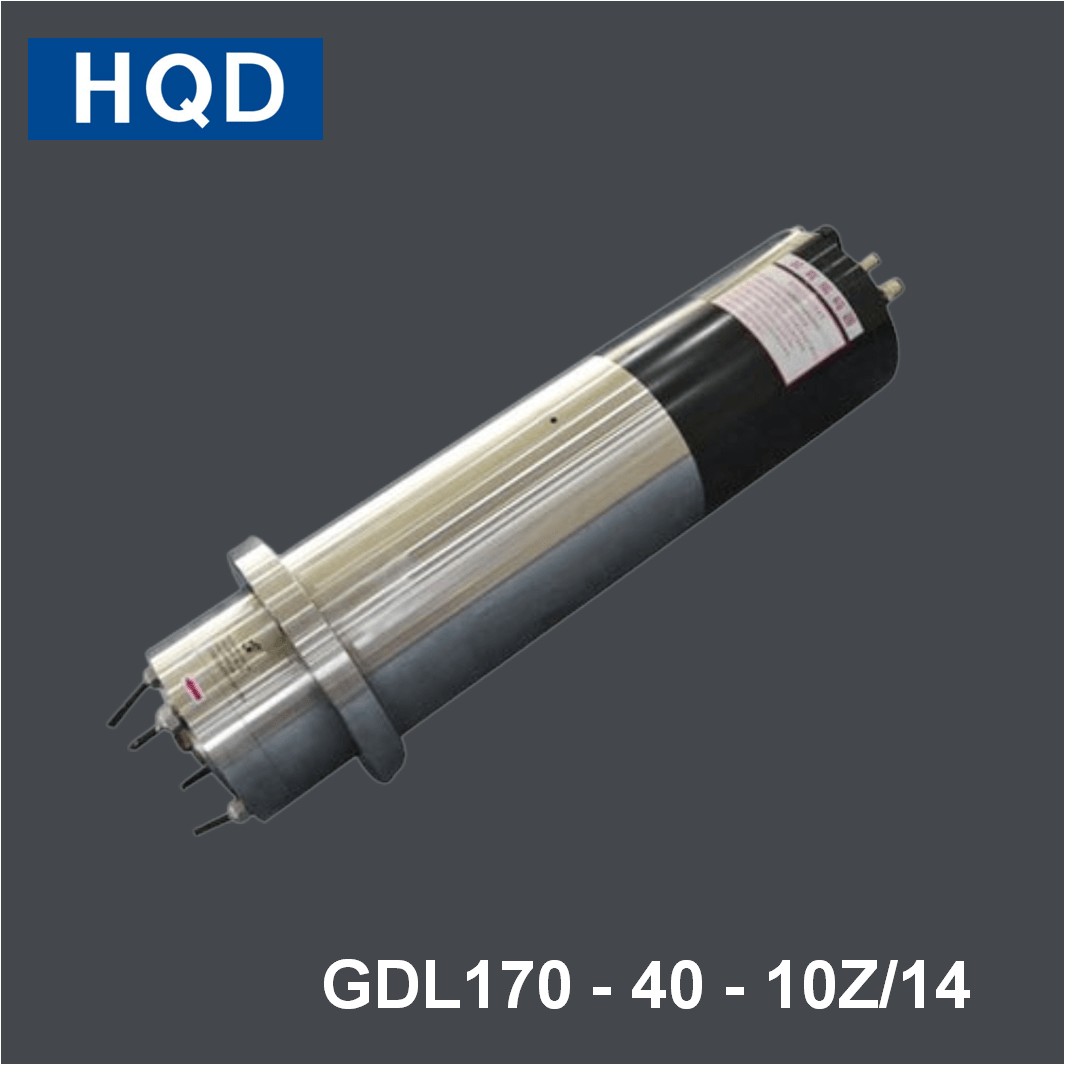

HQD GDL Automatic Tool Change Water-cooled Broach Spindle With Flange GDL170-40-10Z/14

Specifications of HQD GDL Automatic Tool Change Water-cooled Broach Spindle With Flange GDL170-40-10Z/14 are:

Rotating speed: 10000RPM
Rotating speed: 14KW
Torque: 13.38Nm
Voltage: 380V
Current: 28A
Frequency: 334HZ
Connection of spindle end: BT40Keyed cone
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*SM6014C/P4,2*7010C/P4
Weight: 75Kg

Download Outline Diagram for HQD GDL Automatic Tool Change Water-cooled Broach Spindle With Flange GDL170-40-10Z/14
