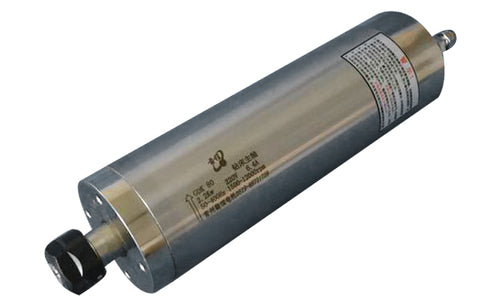

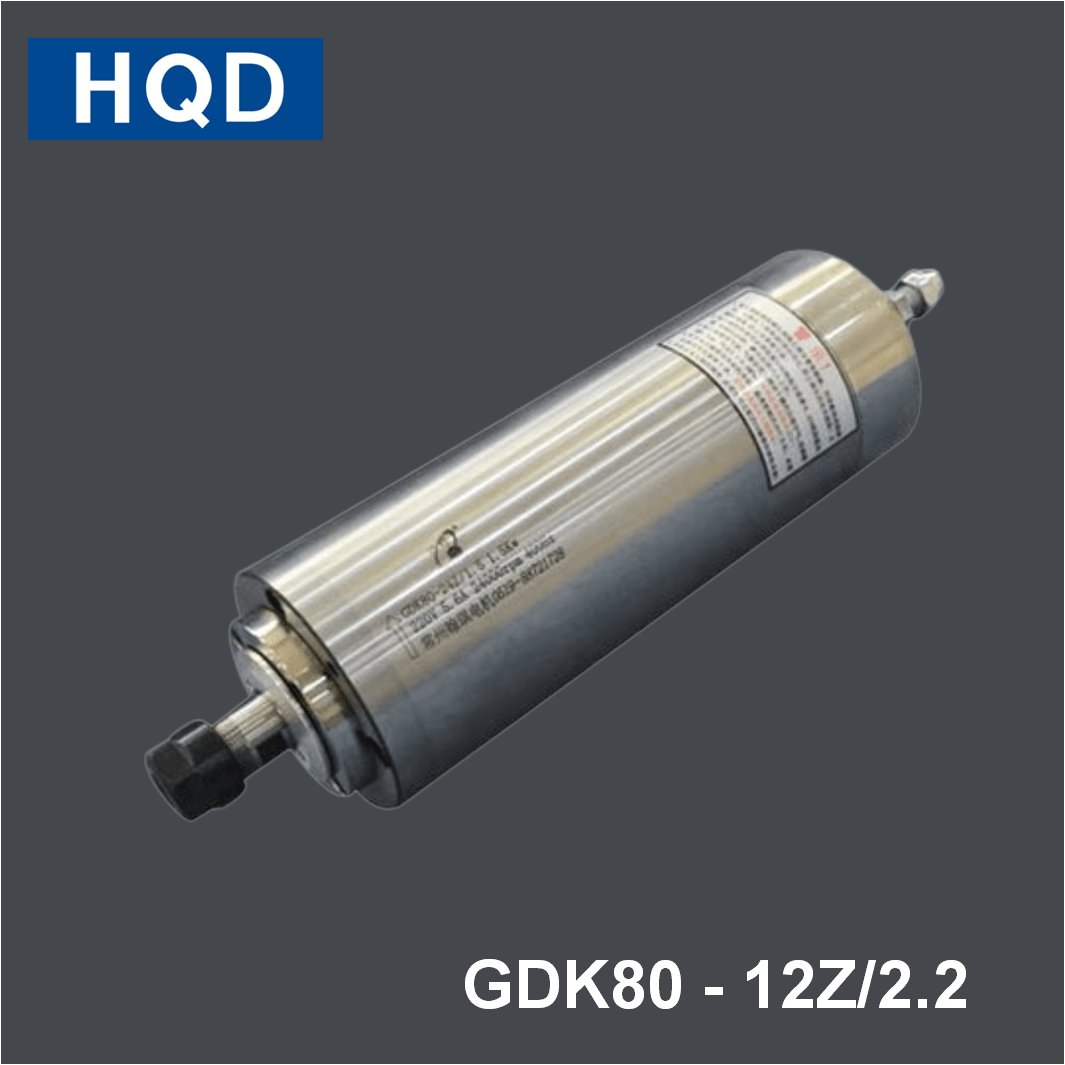

HQD GDK Engraving and Milling Drilling Press Spindle GDK80-12Z/2.2

Specifications of HQD GDK Engraving and Milling Drilling Press Spindle GDK80-12Z/2.2 are:

Speed: 1500-12000RPM
Rated power: 2.2KW
Voltage: 220V
Current: 6.4A
Frequency: 50-400HZ
Number of poles: 4P
Shaft end connection: ER20-Φ3.175-Φ13
Cooling: water cooled
Lubrication: grease
Bearing model: 2*7005C P4, 2*7002C P4
Weight: 7Kg

Download Outline Diagram for HQD GDK Engraving and Milling Drilling Press Spindle GDK80-12Z/2.2
