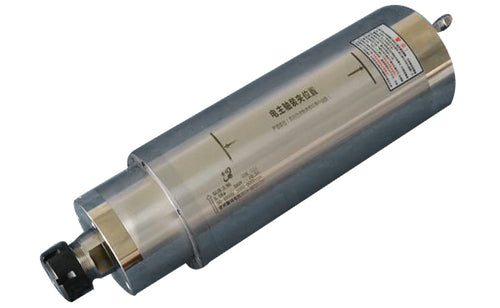

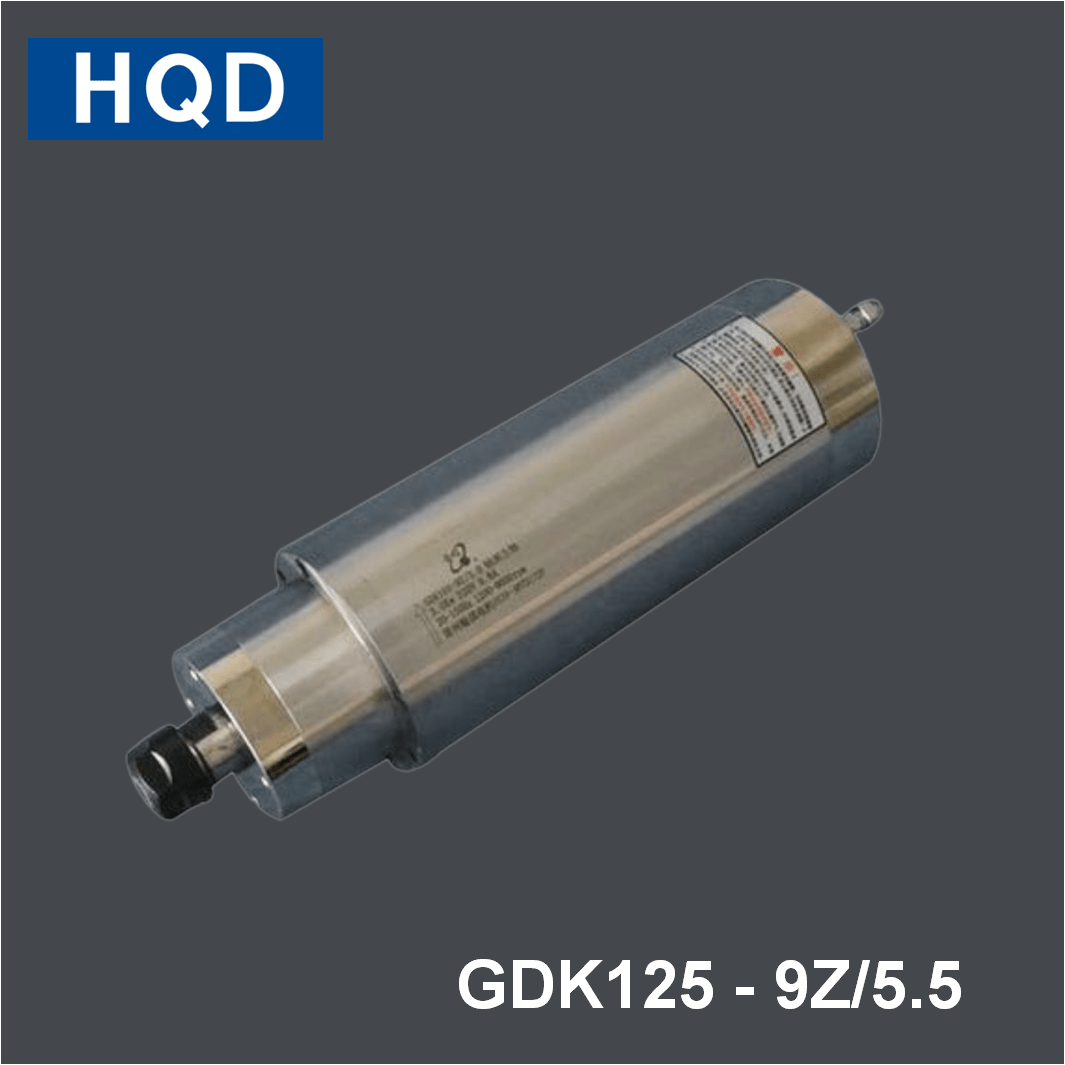

HQD GDK Engraving and Milling Drilling Press Spindle GDK125-9Z/5.5

Specifications of HQD GDK Engraving and Milling Drilling Press Spindle GDK125-9Z/5.5 are:

Rotating speed: 800-9000RPM
Rated power: 5.5KW
Torque: 380V
Voltage: 11.0A
Current: 40-450HZ
Frequency: 6P
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7009C P4,2*7005C P4
Weight: 31Kg

Download Outline Diagram for HQD GDK Engraving and Milling Drilling Press Spindle GDK125-9Z/5.5
