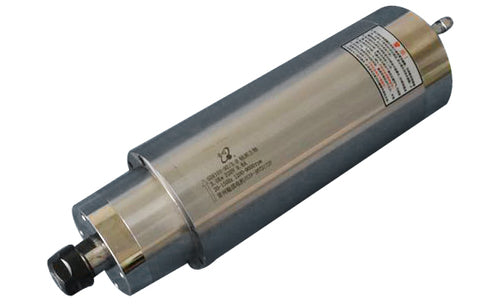

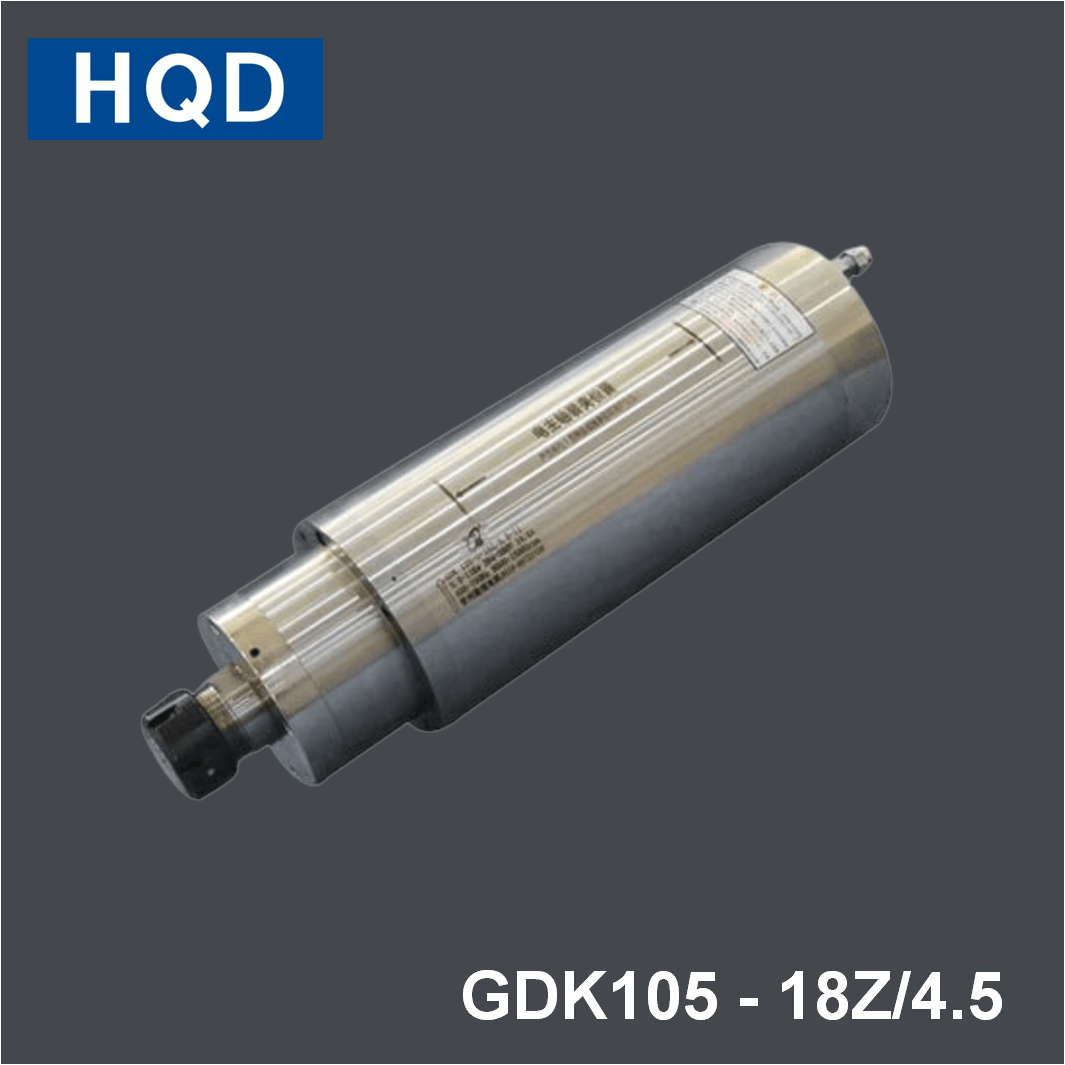

HQD GDK Engraving and Milling Drilling Press Spindle GDK105-18Z/4.5

Specifications of HQD GDK Engraving and Milling Drilling Press Spindle GDK105-18Z/4.5 are:

Speed: 1800-18000RPM
Rated power: 4.5KWv
Voltage: 380V
Current: 9.6A
Frequency: 30-300HZ
Number of poles: 2P
Shaft end connection: ER20-Φ3.175-Φ13
Cooling: water cooled
Lubrication: grease
Bearing model: 2*7006C P4, 2*7004C P4
Weight: 15.5Kg

Download Outline Diagram for HQD GDK Engraving and Milling Drilling Press Spindle GDK105-18Z/4.5
