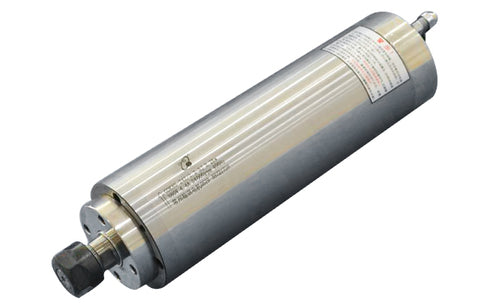

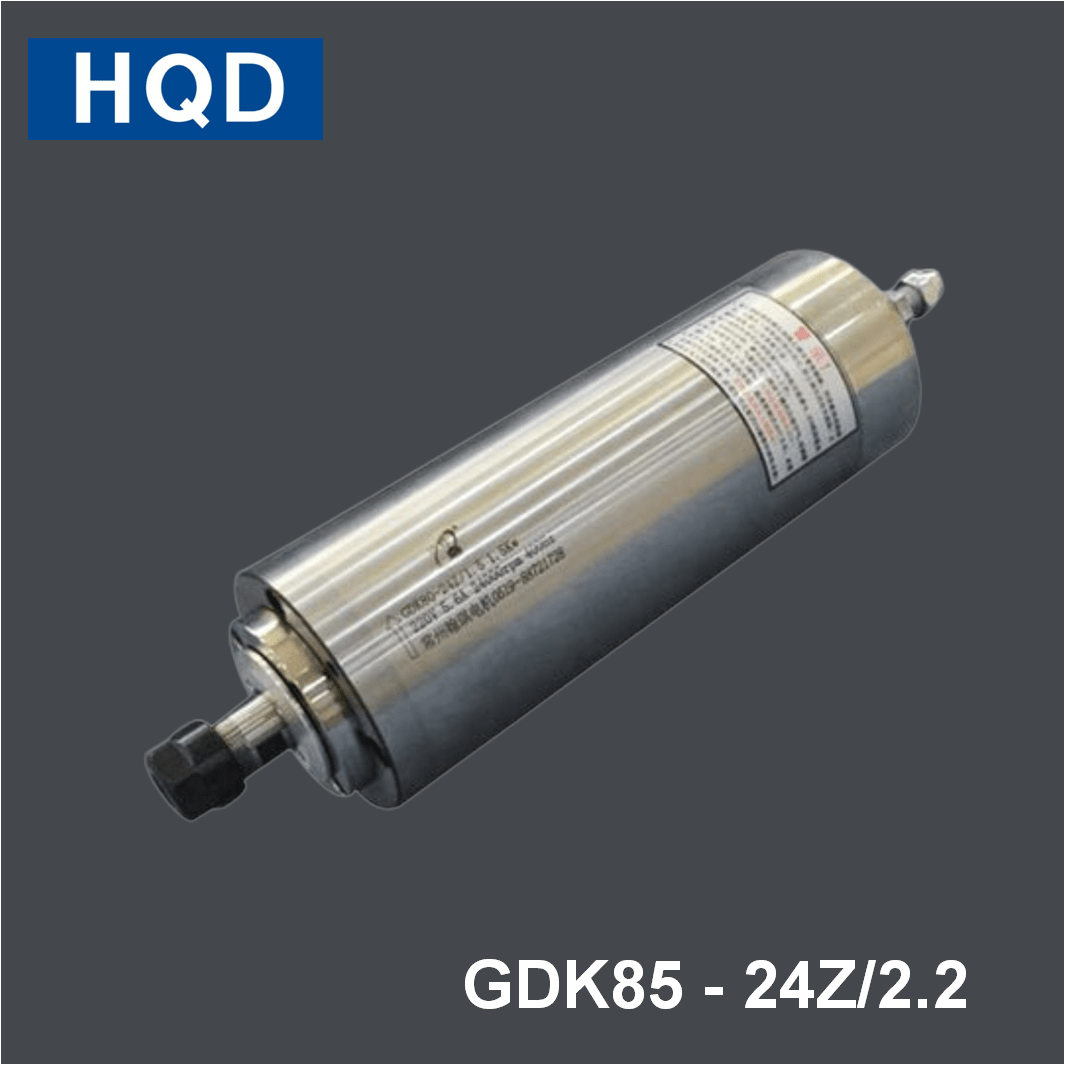

HQD GDK Engraving and Milling Constant Torque Spindle GDK85-24Z/2.2-BJ

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK85-24Z/2.2-BJ are:

Rotating speed: 24000RPM
Rated power: 2.2KW
Torque: 0.88Nm
Voltage: 220/380V
Current: 7.6/4.4A
Frequency: 400HZ
Number of poles: 2P
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7005C P4,2X7002C P4
Weight: 10Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK85-24Z/2.2-BJ
