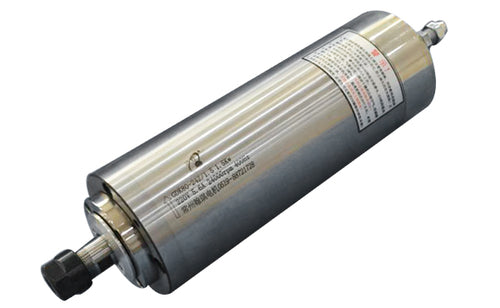

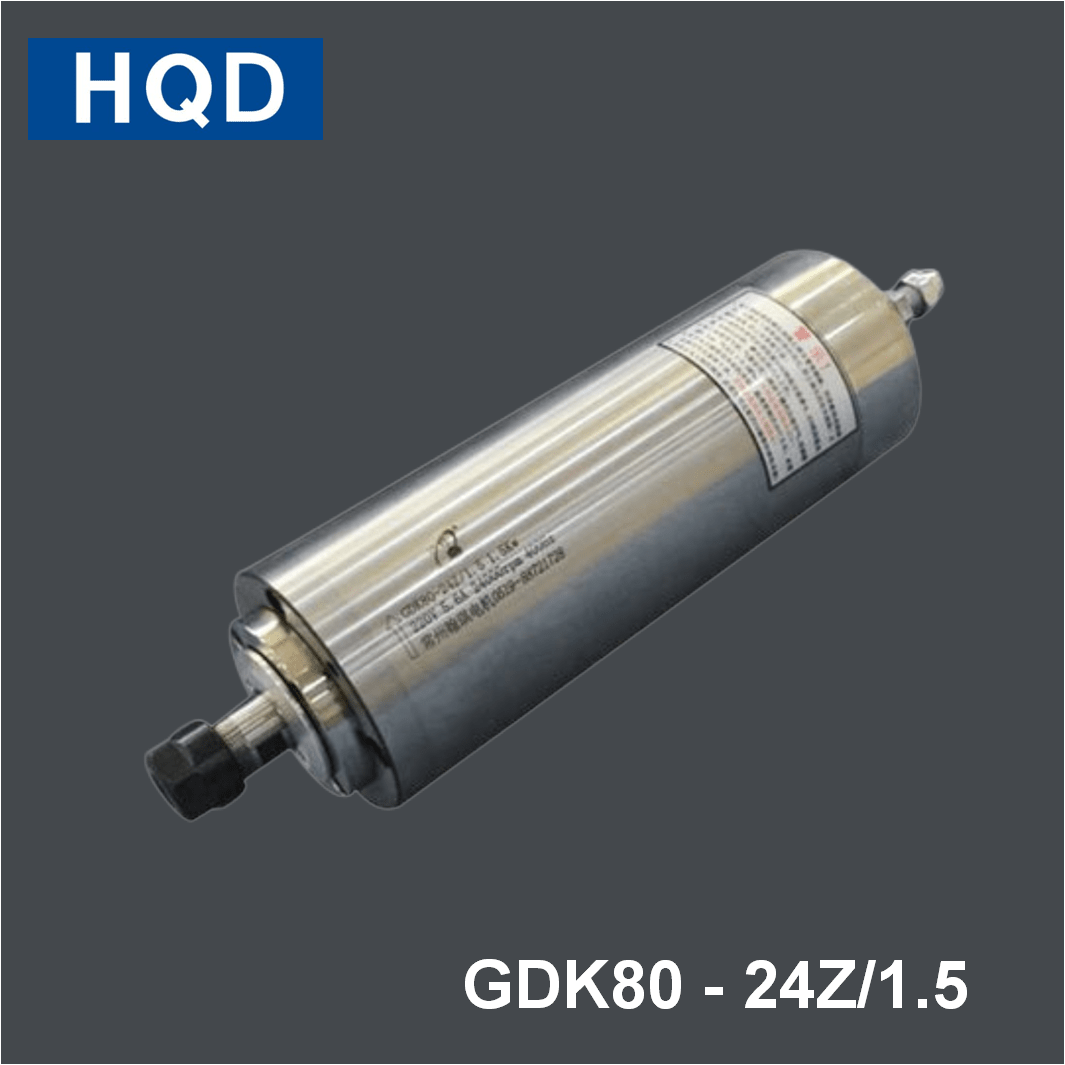

HQD GDK Engraving and Milling Constant Torque Spindle GDK80-24Z/1.5

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK80-24Z/1.5 are:

Rotating speed: 24000RPM
Rated power: 1.5KW
Torque: 0.6Nm
Voltage: 220/380V
Current: 5.6/3A
Frequency: 400HZ
Number of poles: 2P
Connection of spindle end: ER16-Φ3.175-Φ10
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7004C P4,2X7001C P4
Weight: 6Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK80-24Z/1.5
