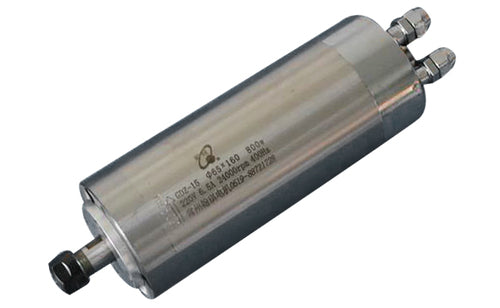

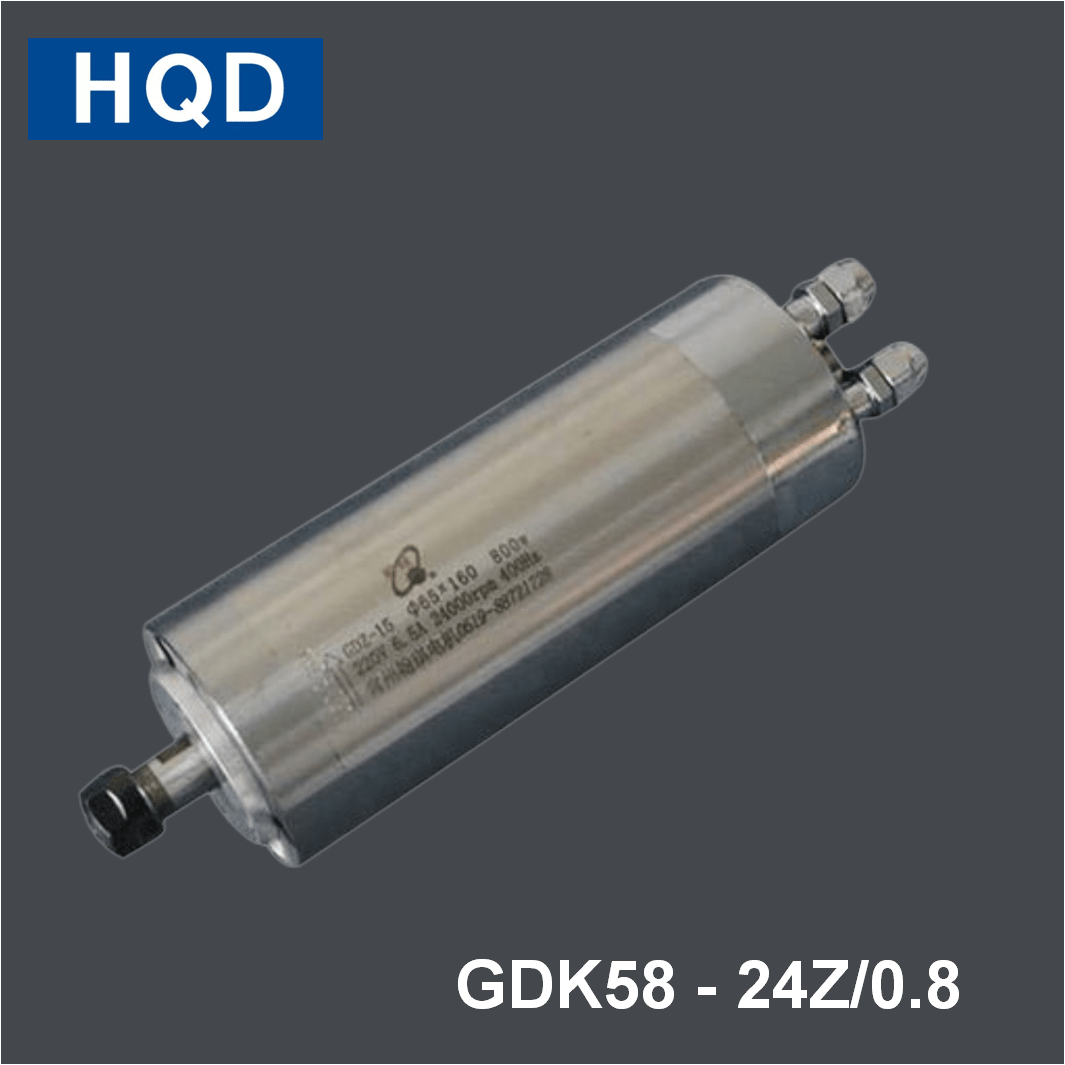

HQD GDK Engraving and Milling Constant Torque Spindle GDK58-24Z/0.8

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK58-24Z/0.8 are:

Rotating speed: 24000RPM
Rated power: 0.8KW
Torque: 0.32Nm
Voltage: 220V
Current: 3A
Frequency: 400HZ
Number of poles: 2P
Connection of spindle end: ER11-Φ3.175-Φ7.0
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7002C P4，1X7000C P4
Weight: 3Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK58-24Z/0.8
