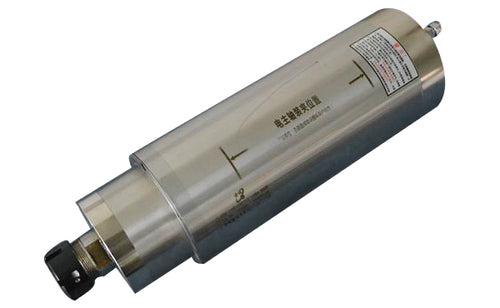

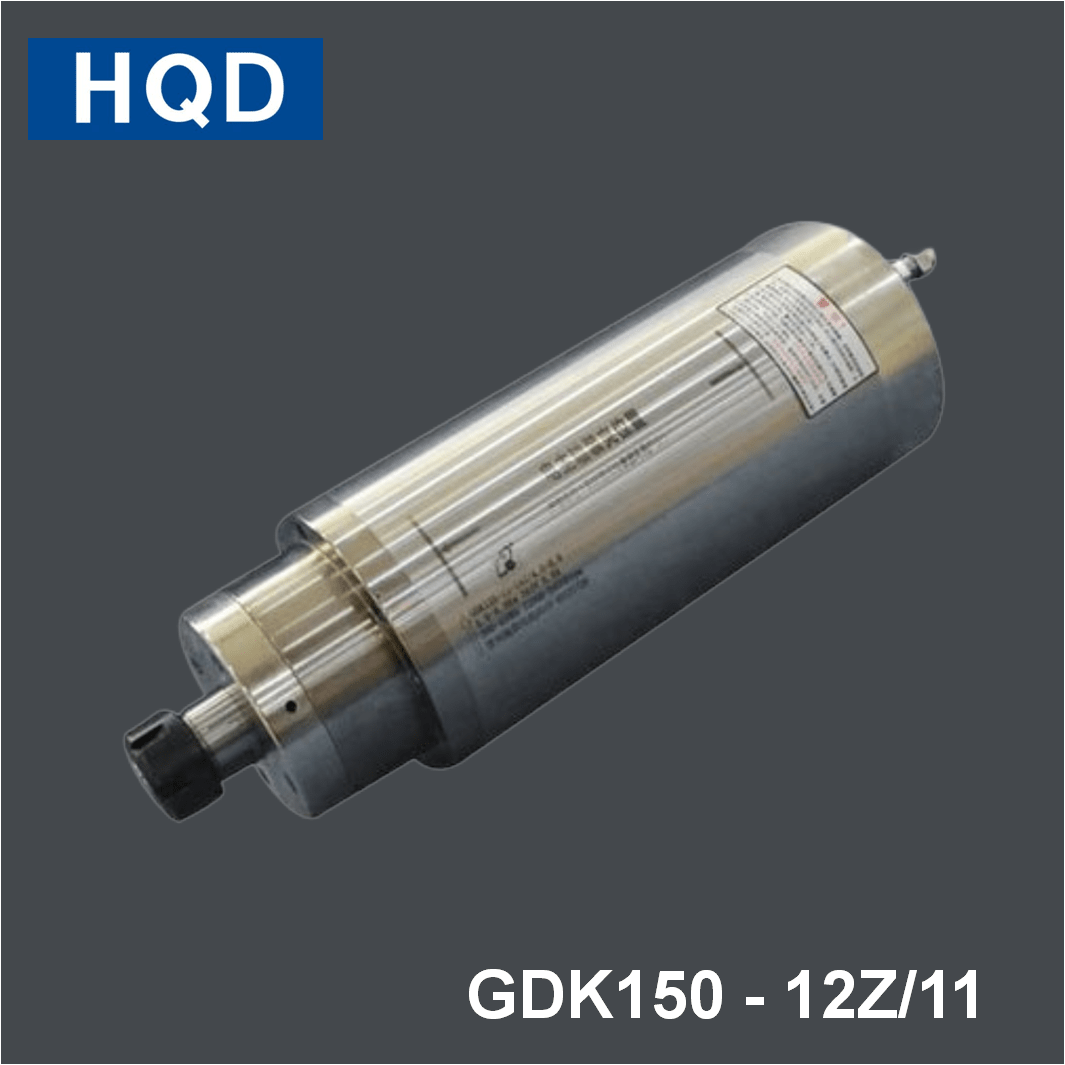

HQD GDK Engraving and Milling Constant Torque Spindle GDK150-12Z/11

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK150-12Z/11 are:

Rotating speed: 12000RPM
Rated power: 11KW
Torque: 8.75Nm
Voltage: 380V
Current: 22A
Frequency: 400HZ
Number of poles: 4P
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7209C P4,2X7007C P4
Weight: 46Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK150-12Z/11
