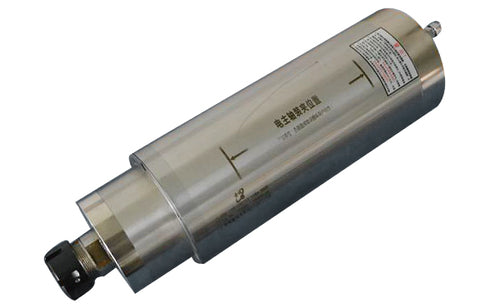

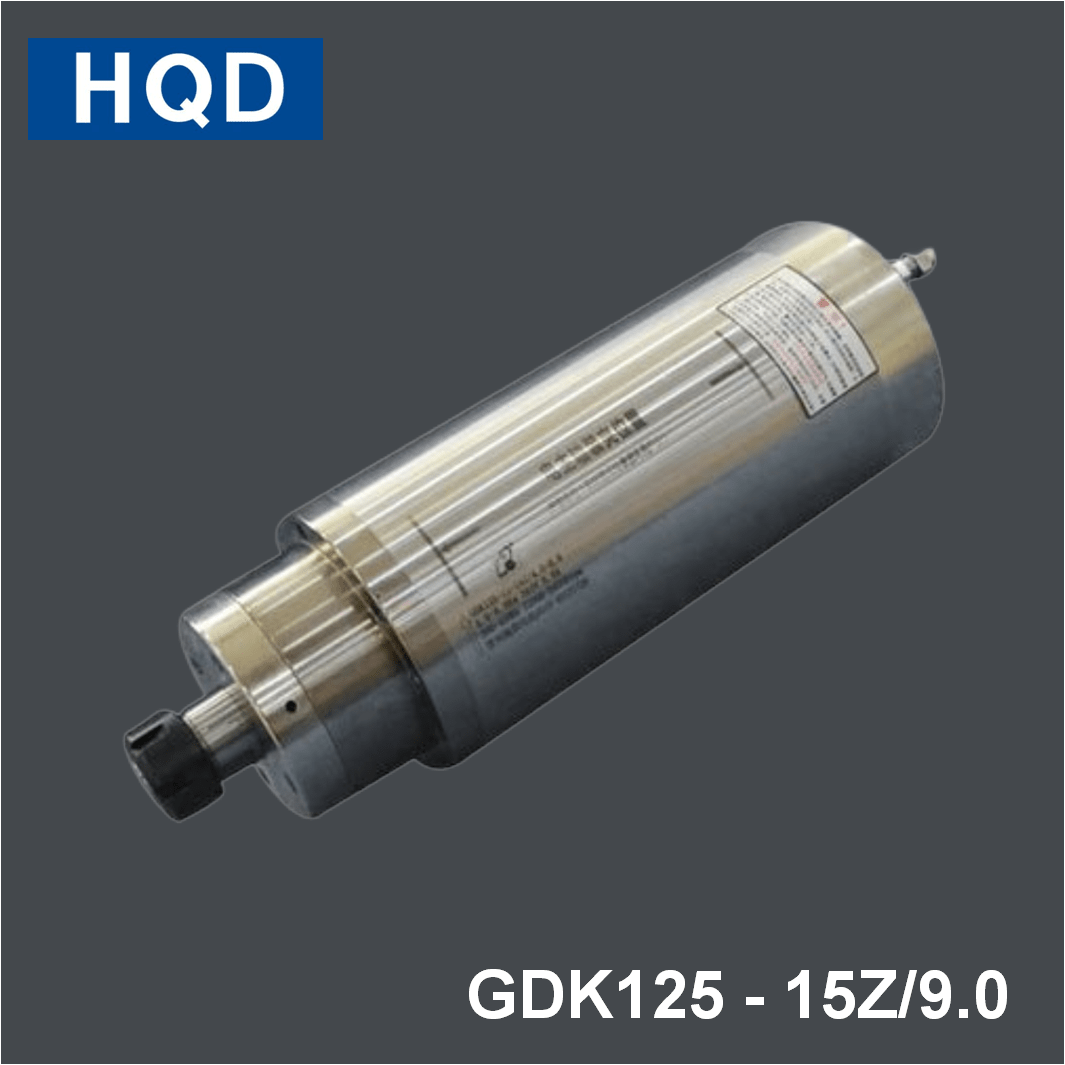

HQD GDK Engraving and Milling Constant Torque Spindle GDK125-15Z/9.0

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK125-15Z/9.0 are:

Rotating speed: 15000RPM
Rated power: 9KW
Torque: 5.73Nm
Voltage: 220/380V
Current: 31/18A
Frequency: 750HZ
Number of poles: 6P
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7009C P4,2X7005C P4
Weight: 31Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK125-15Z/9.0
