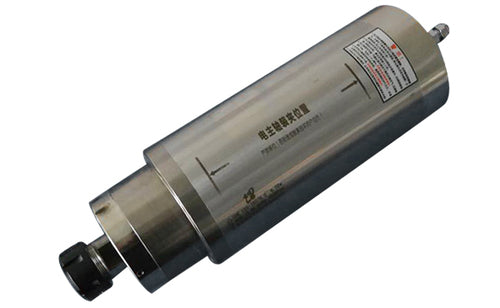

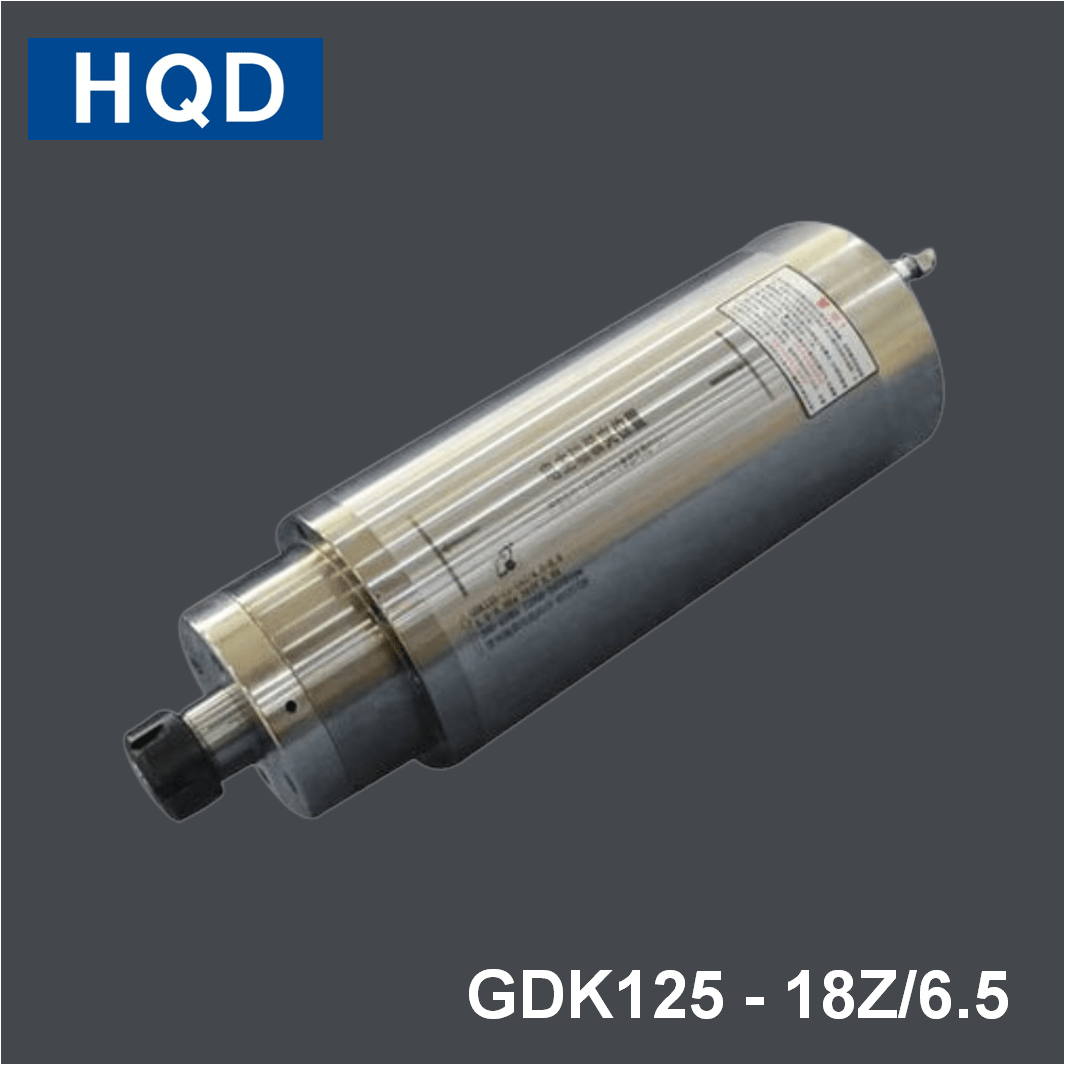

HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/6.5

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/6.5 are:

Rotating speed: 18000RPM
Rated power: 6.5KW
Torque: 3.45Nm
Voltage: 220/380V
Current: 22.5/13A
Frequency: 300HZ
Number of poles: 2P
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7008C P4,2X7005C P4
Weight: 25Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/6.5
