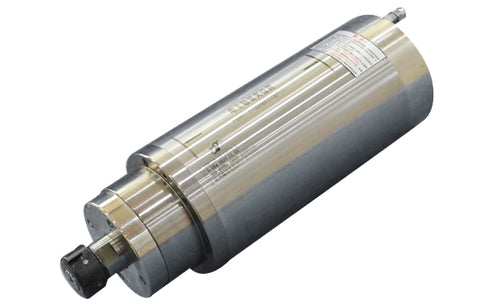

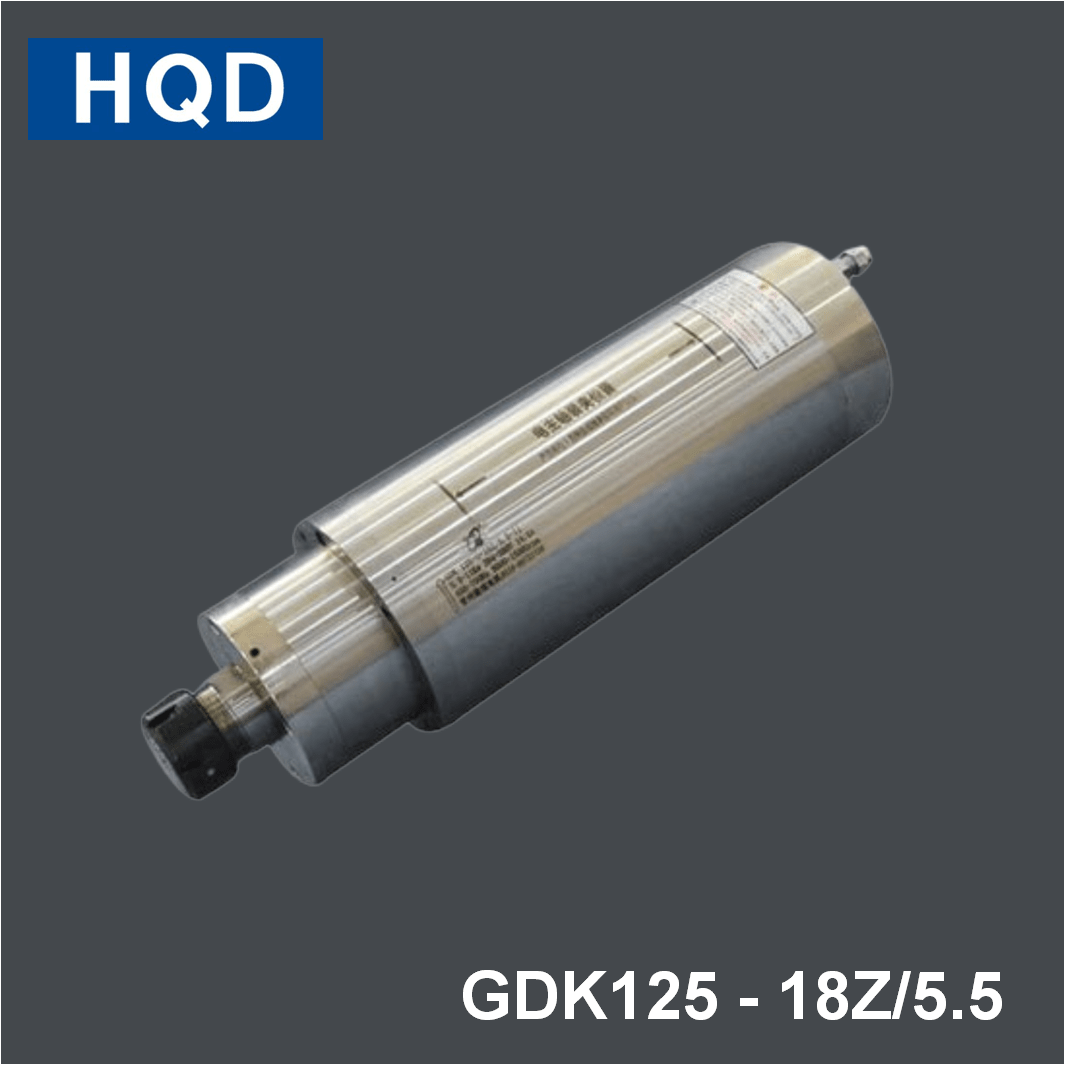

HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/5.5

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/5.5 are:

Rotating speed: 18000RPM
Rated power: 5.5KW
Torque: 2.92Nm
Voltage: 220V
Current: 19A
Frequency: 300HZ
Number of poles: 2P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4,2X7005C P4
Weight: 25Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/5.5
