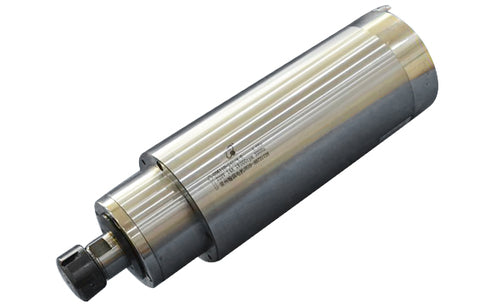

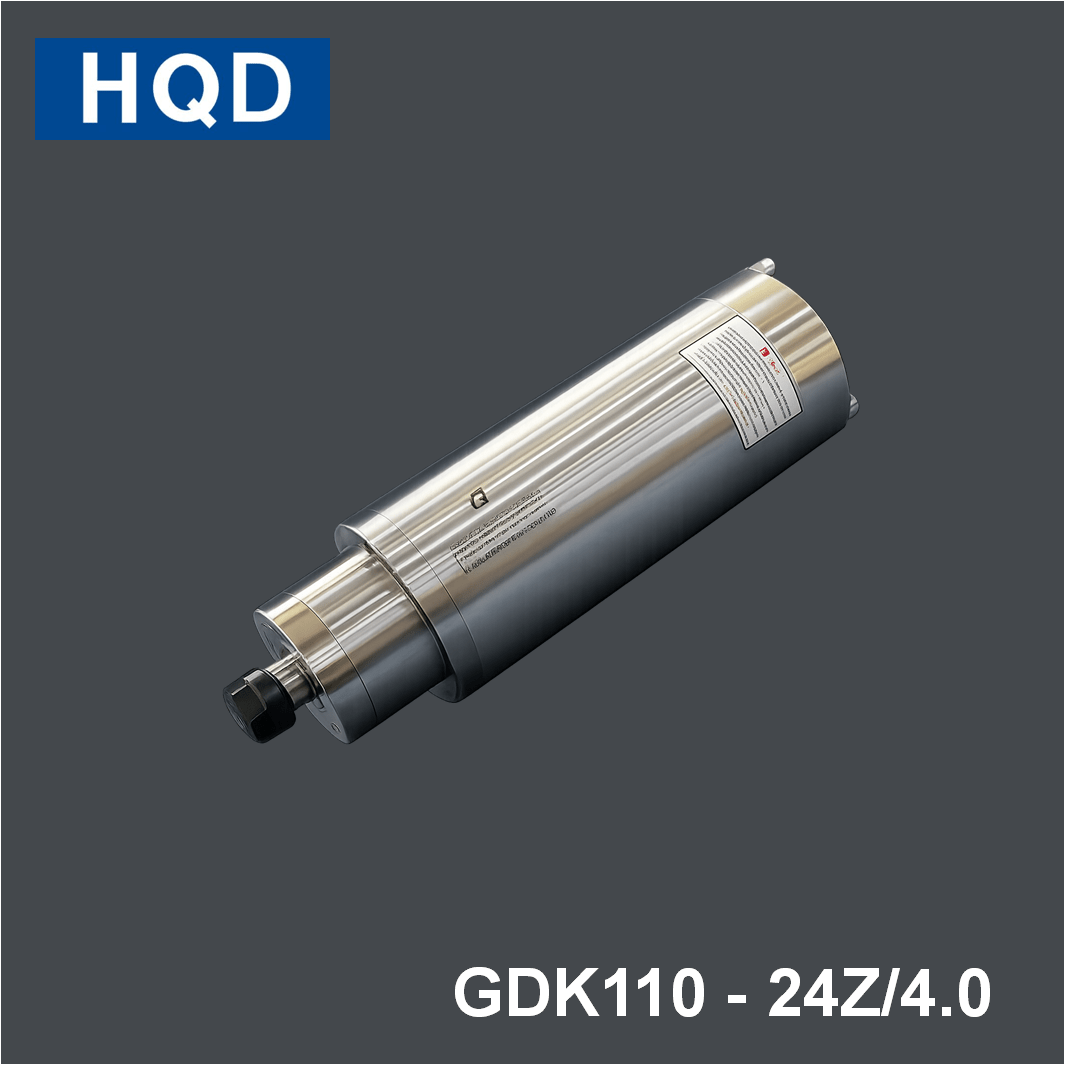

HQD GDK Engraving and Milling Constant Torque Spindle GDK110-24Z/4.0

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK110-24Z/4.0 are:

Rotating speed: 24000RPM
Rated power: 4KW
Torque: 1.59Nm
Voltage: 220/380V
Current: 14/8A
Frequency: 400HZ
Number of poles: 2P
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7006C P4,2X7004C P4
Weight: 13Kg
