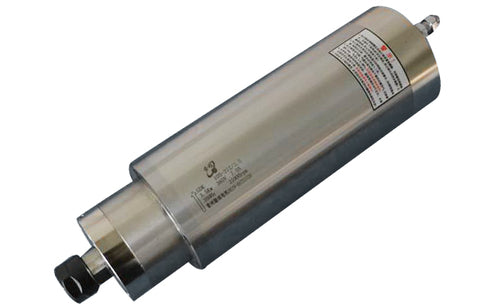

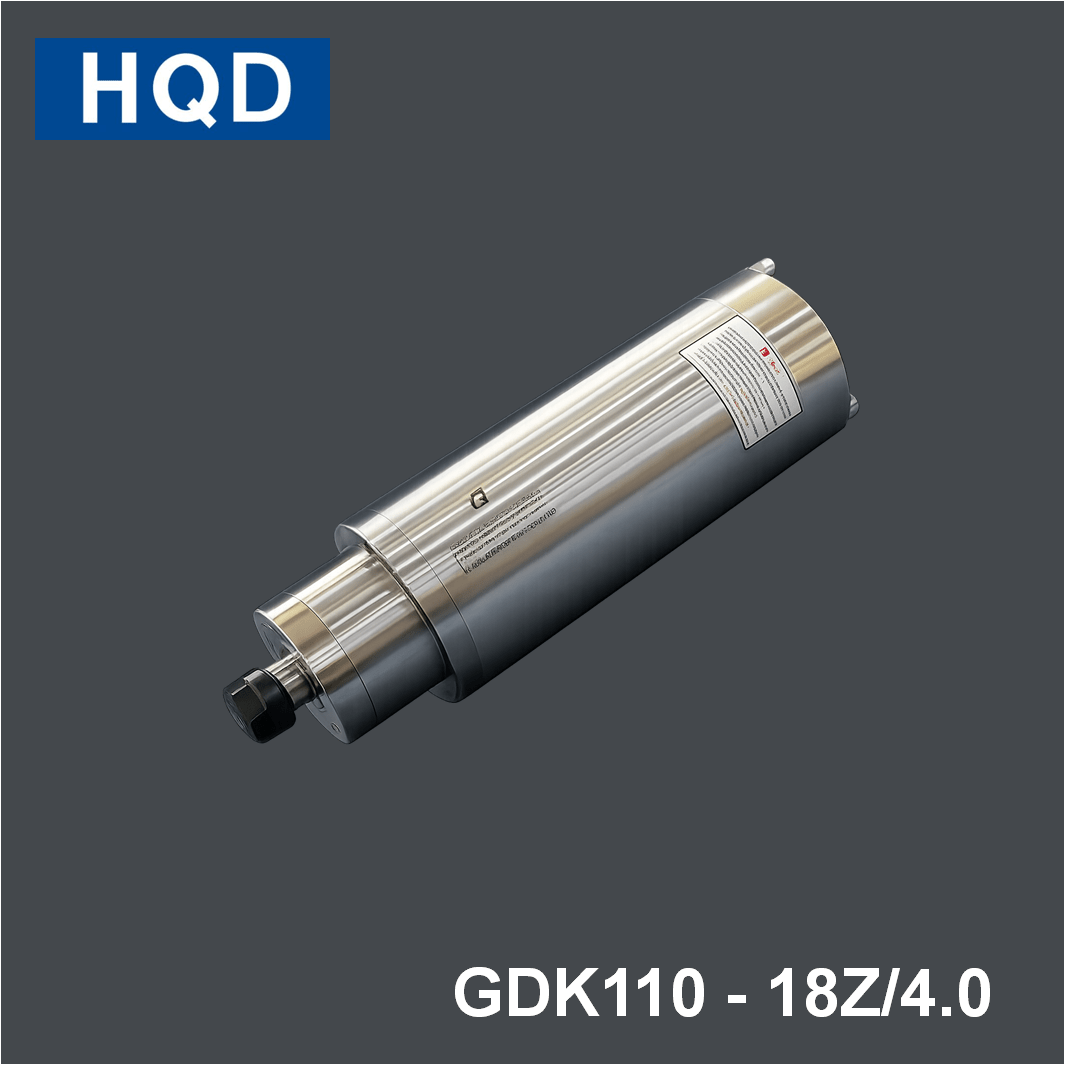

HQD GDK Engraving and Milling Constant Torque Spindle GDK110-18Z/4.0

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK110-18Z/4.0 are:

Rotating speed: 18000RPM
Rated power: 4.0KW
Torque: 2.12Nm
Voltage: 220/380V
Current: 14/8A
Frequency: 300HZ
Number of poles: 2P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4,2X7004C P4
Weight: 16Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK110-18Z/4.0
