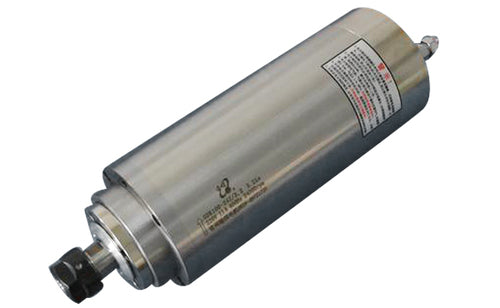

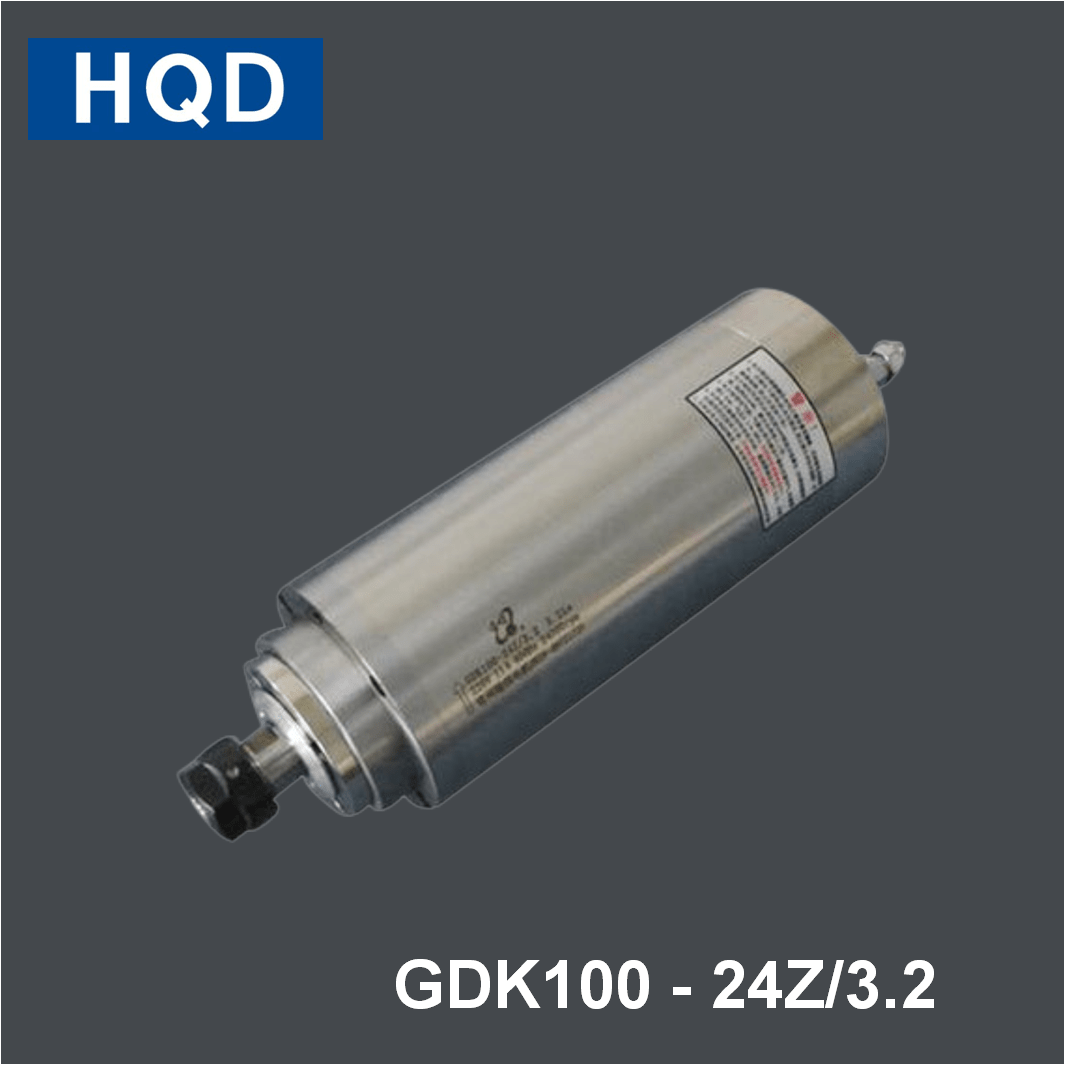

HQD GDK Engraving and Milling Constant Torque Spindle GDK100-24Z/3.2

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK100-24Z/3.2 are:

Rotating speed: 24000RPM
Rated power: 3.2KW
Torque: 1.27Nm
Voltage: 220/380V
Current: 11/6.4A
Frequency: 400HZ
Number of poles: 2P
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7005C P4,2X7003C P4
Weight: 9Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK100-24Z/3.2
