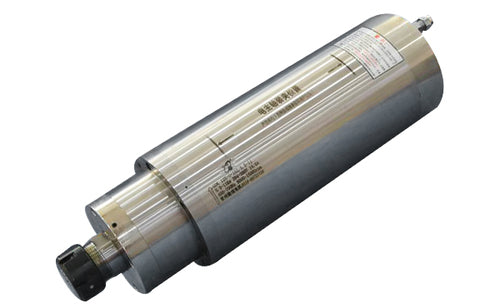

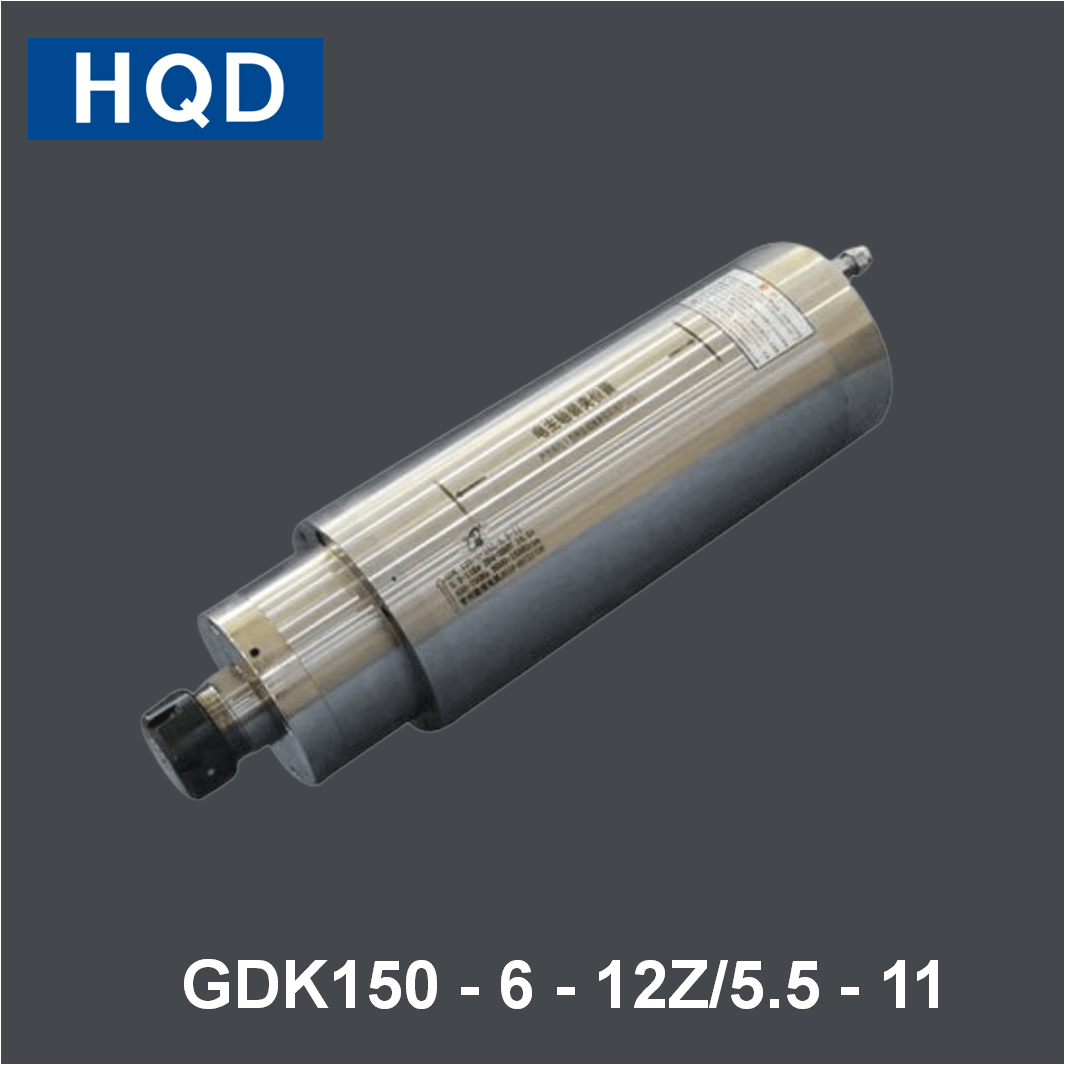

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK150-6-12Z/5.5-11

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK150-6-12Z/5.5-11 are:

Rotating speed: 6000-12000RPM
Rated power: 5.5KW
Torque: 8.75-4.38Nm
Voltage: 269-380V
Current: 14.8A
Frequency: 200-400HZ
Number of poles: 4P
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7209C P4，2X7007C P4
Weight: 46Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK150-6-12Z/5.5-11
