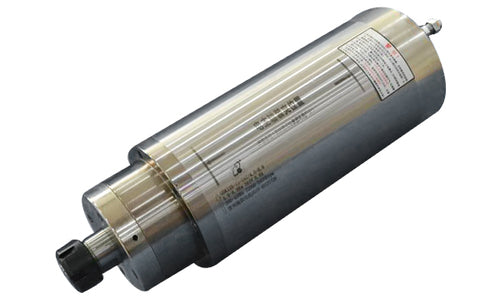

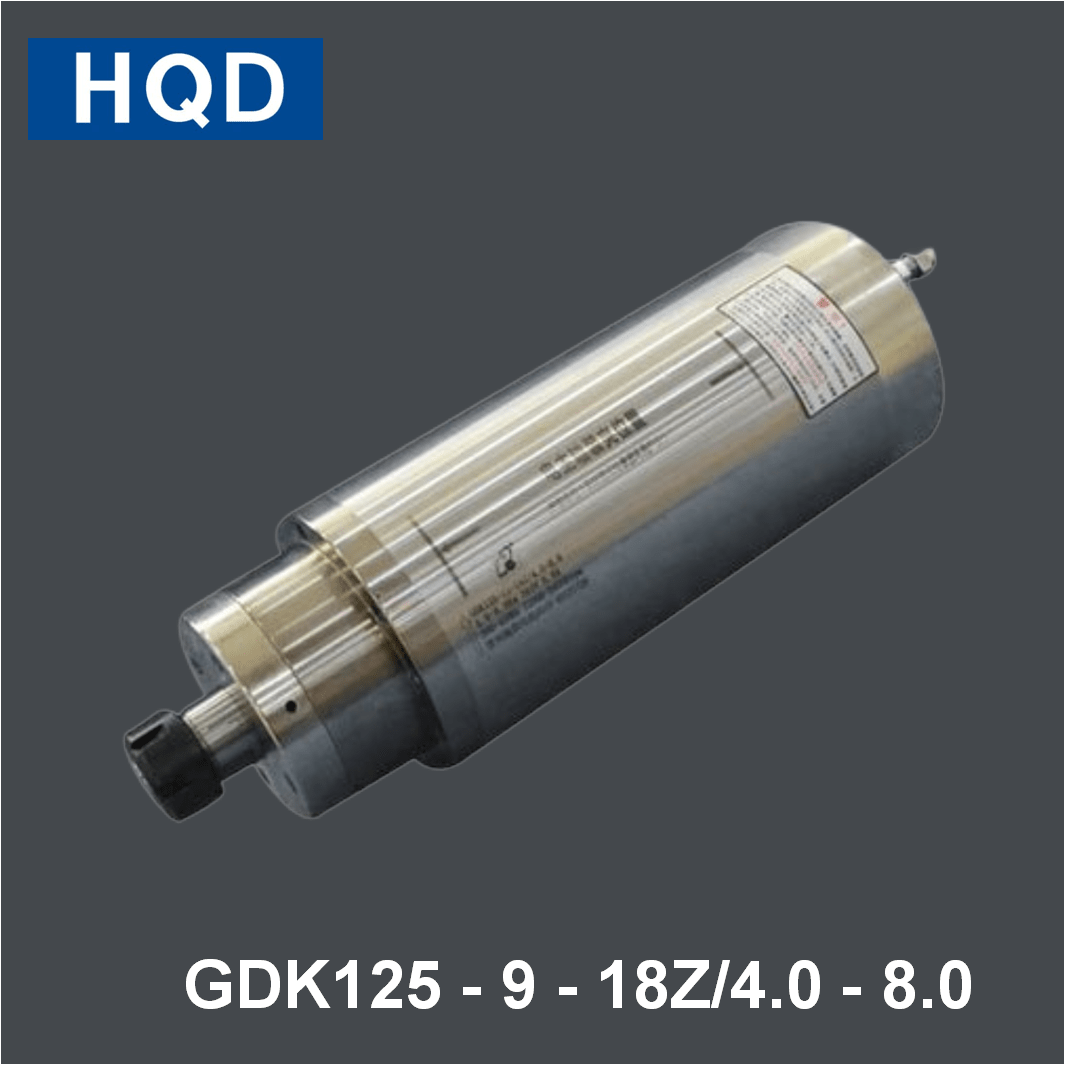

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-18Z/4.0-8.0

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-18Z/4.0-8.0 are:

Rotating speed: 12000-24000RPM
Rated power: 4.0KW
Torque: 3.18-1.59Nm
Voltage: 380-380V
Current: 8.9A
Frequency: 200-400HZ
Number of poles: 2P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4,2X7005C P4
Weight: 25Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-18Z/4.0-8.0
