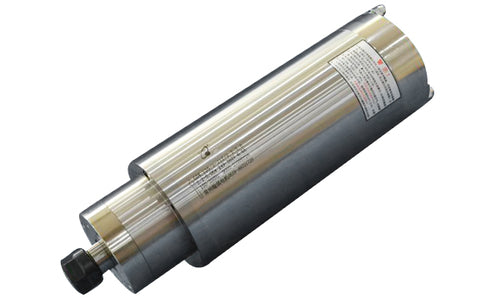

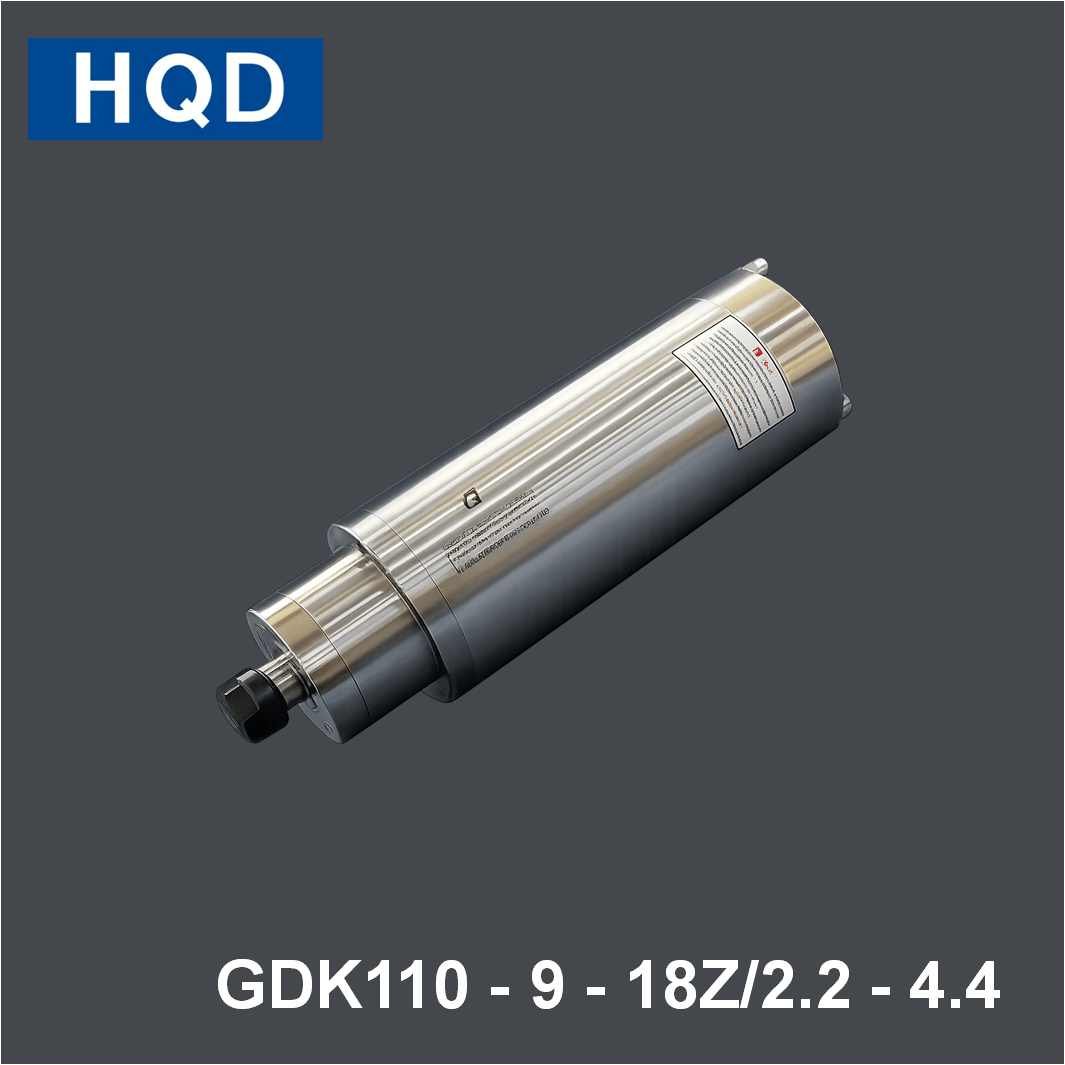

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK110-9-18Z/2.2-4.4

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK110-9-18Z/2.2-4.4 are:

Rotating speed: 9000-18000RPM
Rated power: 2.2KW
Torque: 2.33-1.17Nm
Voltage: 249-380V
Current: 6.0A
Frequency: 150-300HZ
Number of poles: 2P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4,2X7004C P4
Weight: 16Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK110-9-18Z/2.2-4.4
