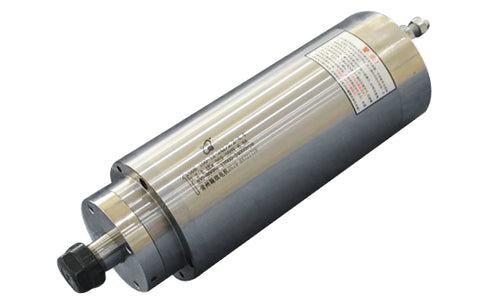

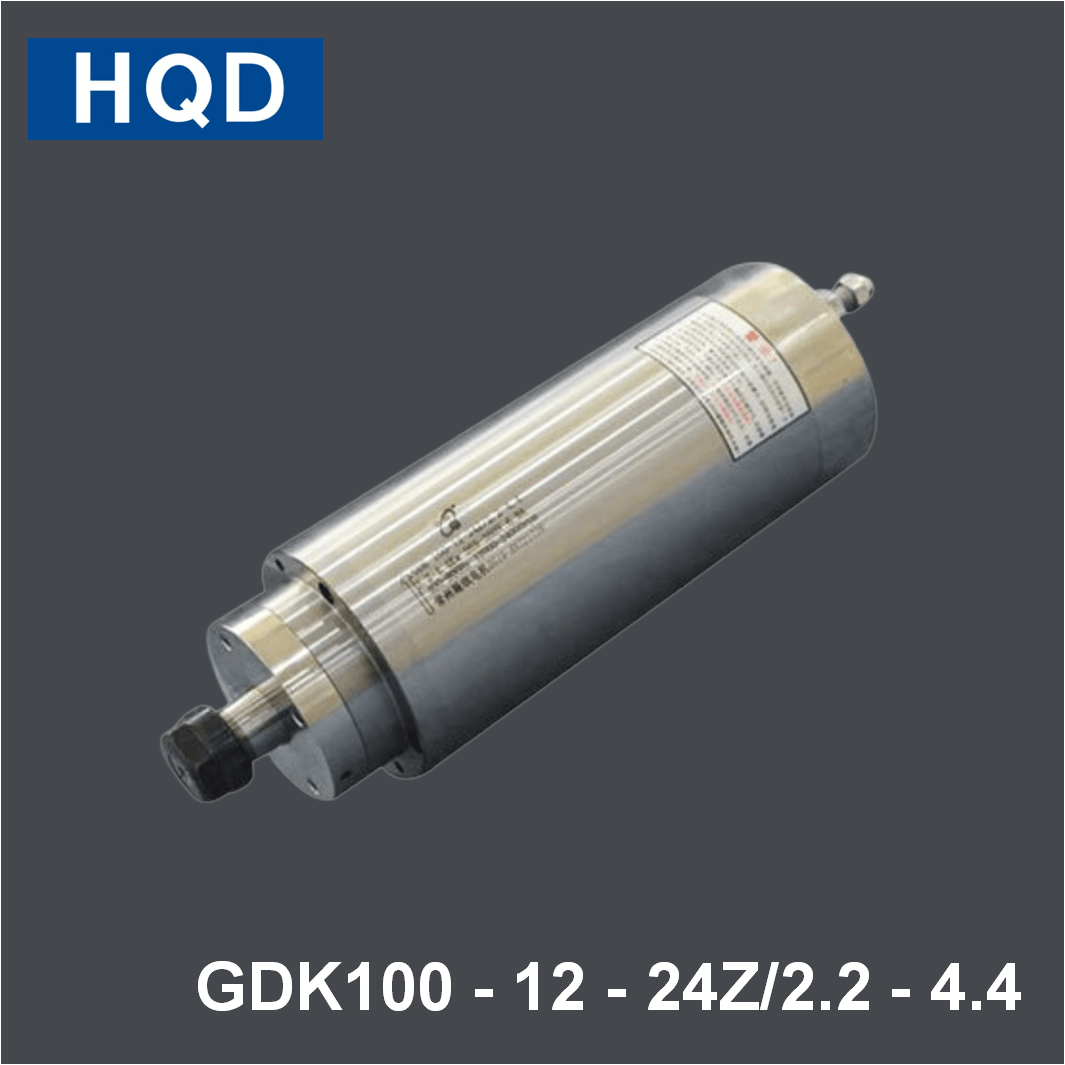

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK100-12-24Z/2.2-4.4

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK100-12-24Z/2.2-4.4 are:

Rotating speed: 12000-24000RPM
Rated power: 2.2KW
Torque: 1.75-0.88Nm
Voltage: 269-380V
Current: 6.8A
Frequency: 400-800HZ
Number of poles: 4P
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7005C P4,2X7003C P4
Weight: 12Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK100-12-24Z/2.2-4.4
