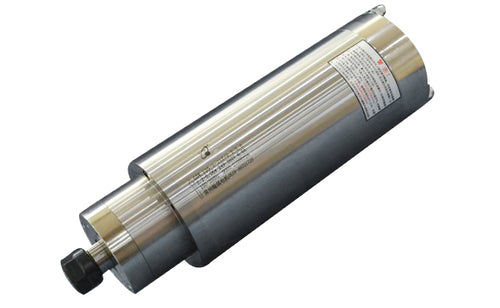

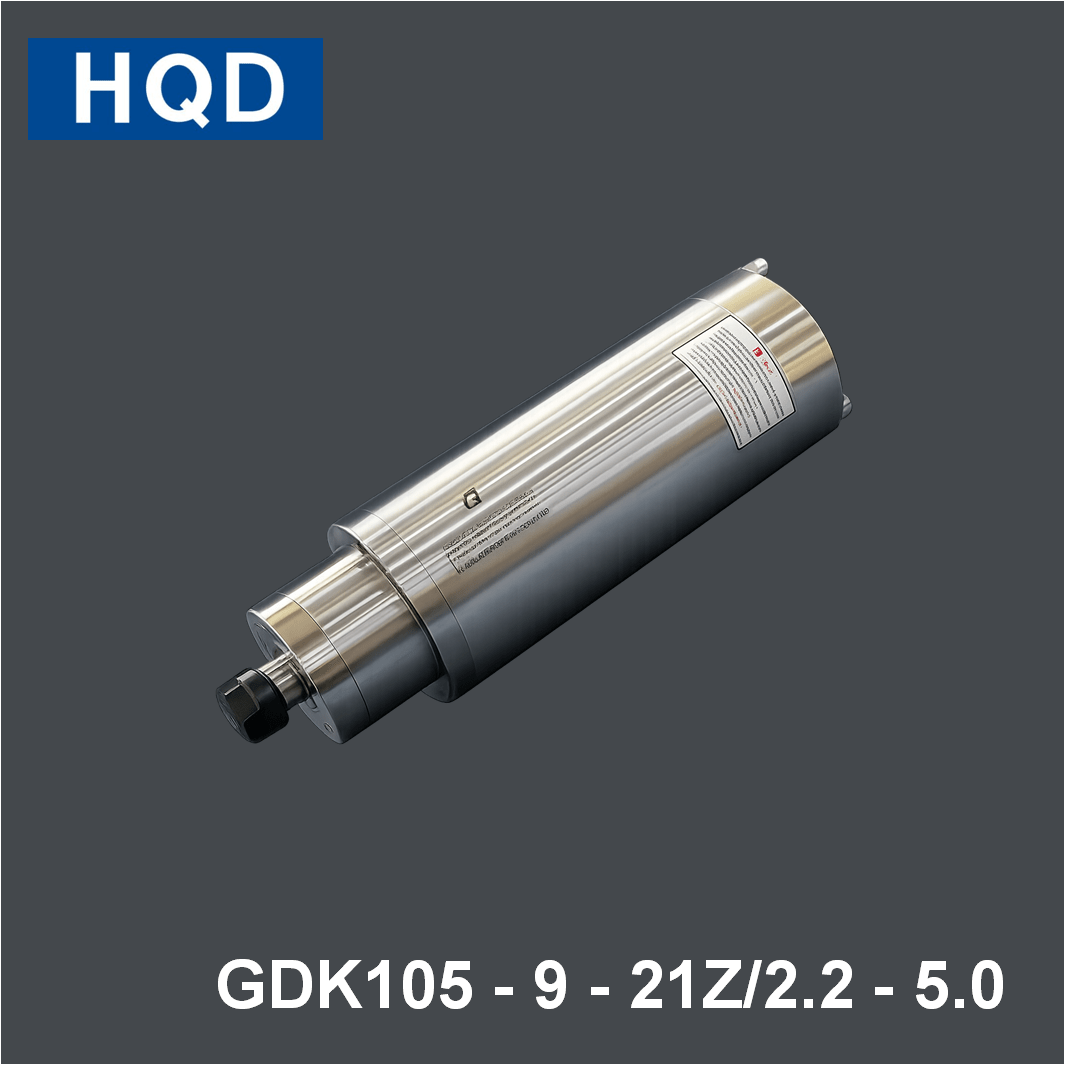

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK105-9-21Z/2.2-5.0

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle 105-9-21Z/2.2-5.0 are:

Rotating speed: 9000-21000RPM
Rated power: 2.2KW
Torque: 2.33-1.00Nm
Voltage: 249-380V
Current: 6.0A
Frequency: 150-350HZ
Number of poles: 2P
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7006C P4,2X7004C P4
Weight: 15Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK105-9-21Z/2.2-5.0
