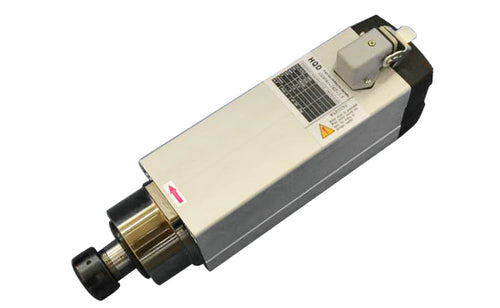

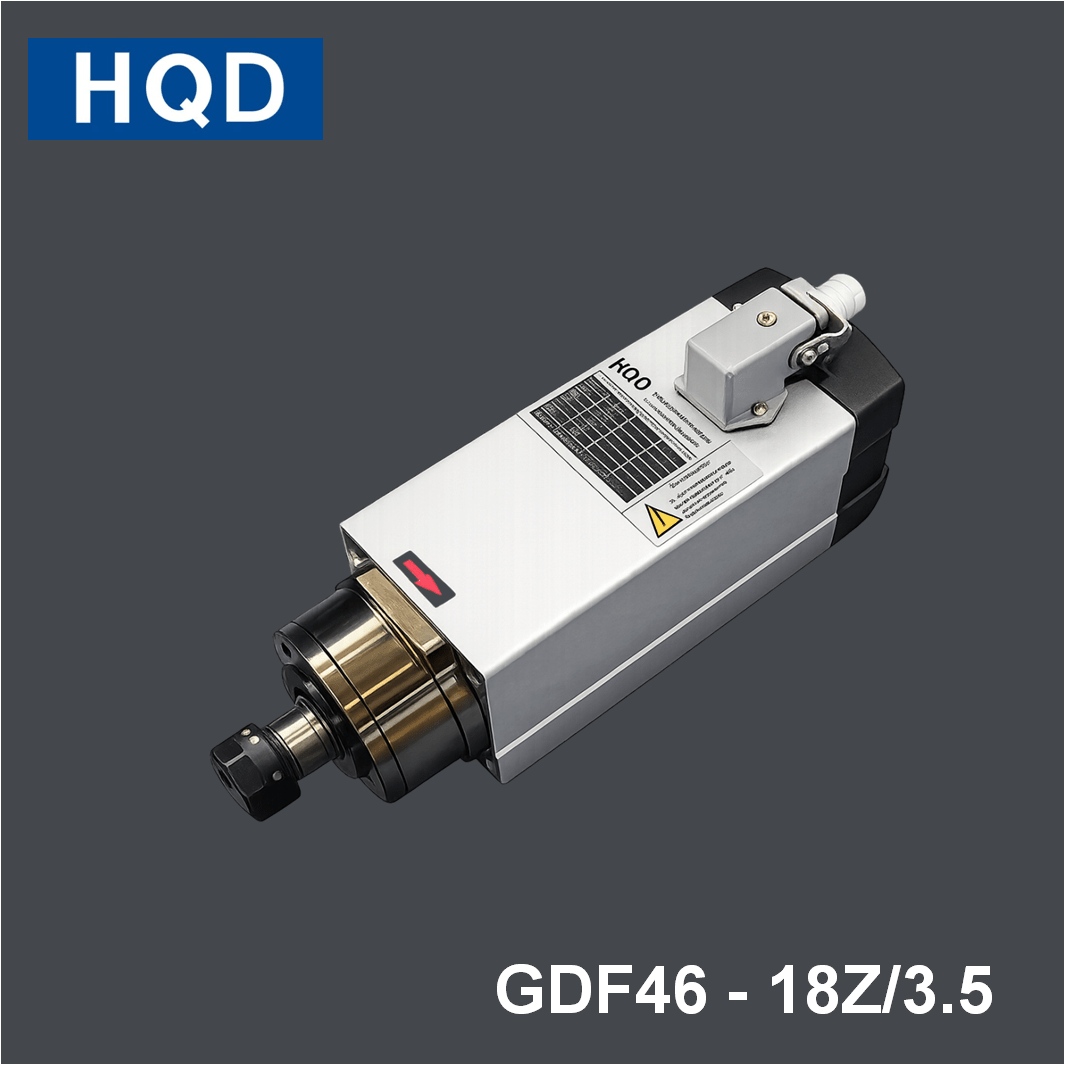

HQD GDF Woodworking Square Air-cooled Spindle GDF46-18Z/3.5

Specifications of HQD GDF Woodworking Square Air-cooled Spindle GDF46-18Z/3.5 are:

Rotating speed: 18000/21000 RPM
Rated power: 3.5KW
Torque: 1.59/1.36Nm
Voltage: 220/380V
Current: 12/7A
Frequency: 300/400HZ
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7007C P4,2*7002C P4
Weight: 8Kg

Download Outline Diagram for HQD GDF Woodworking Square Air-cooled Spindle GDF46-18Z/3.5
