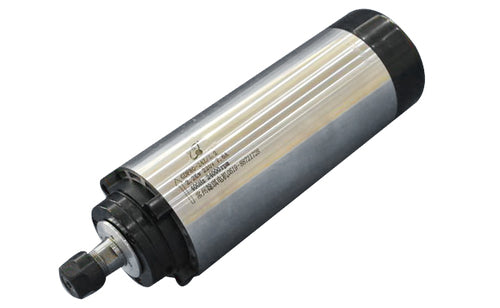

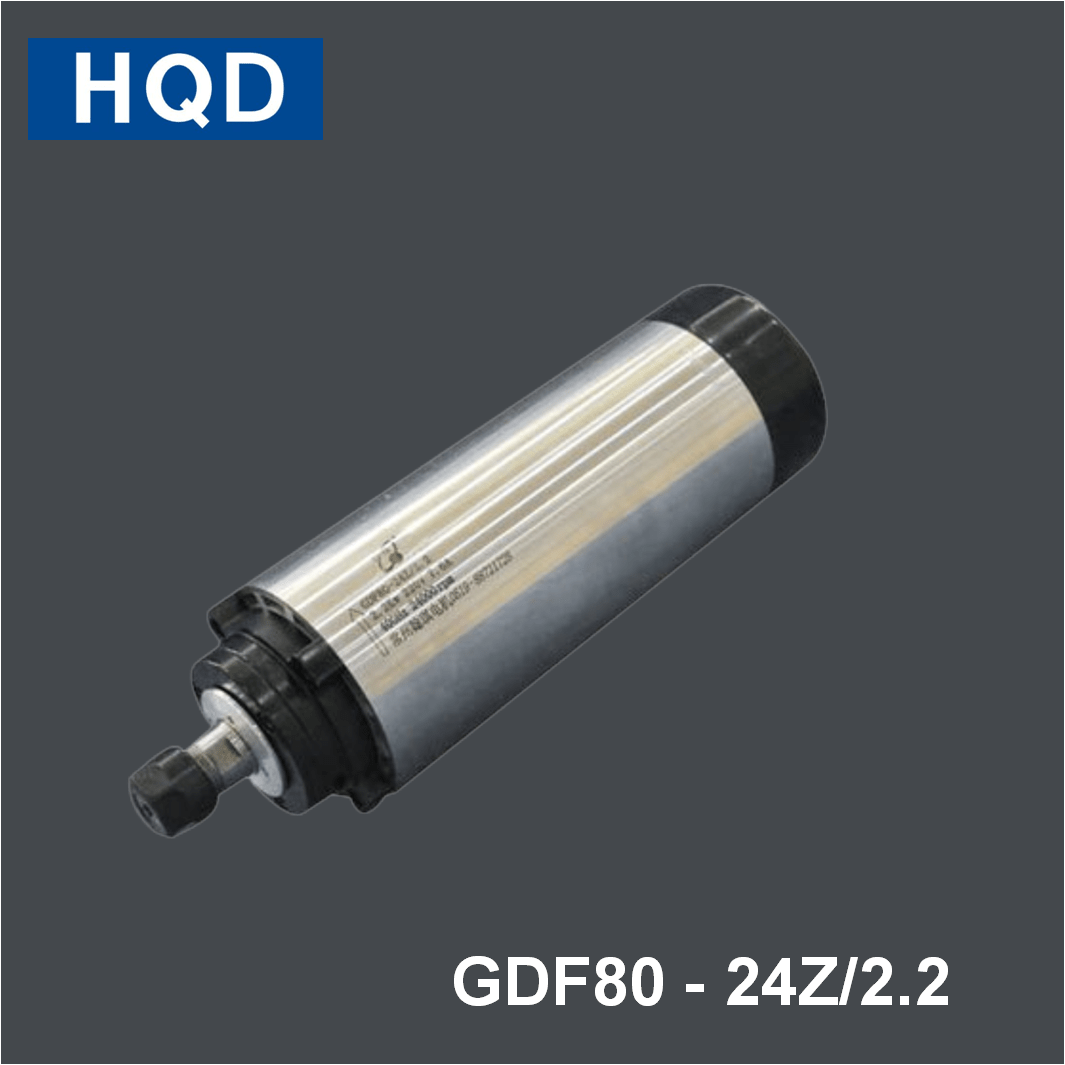

HQD GDF Woodworking Round Air-cooled Spindle GDF80-24Z/2.2

Specifications of HQD GDF Woodworking Round Air-cooled Spindle GDF80-24Z/2.2 are:

Rotating speed: 24000RPM
Rated power: 2.2KW
Torque: 0.58Nm
Voltage: 220/380V
Current: 7.6/4.4A
Frequency: 400HZ
Connection of spindle end: ER16-Φ3.175-Φ10.0
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7004C P4.1*7002C P4
Weight: 4.5Kg

Download Outline Diagram for HQD GDF Woodworking Round Air-cooled Spindle GDF80-24Z/2.2
