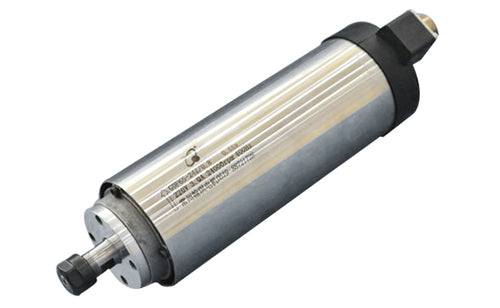

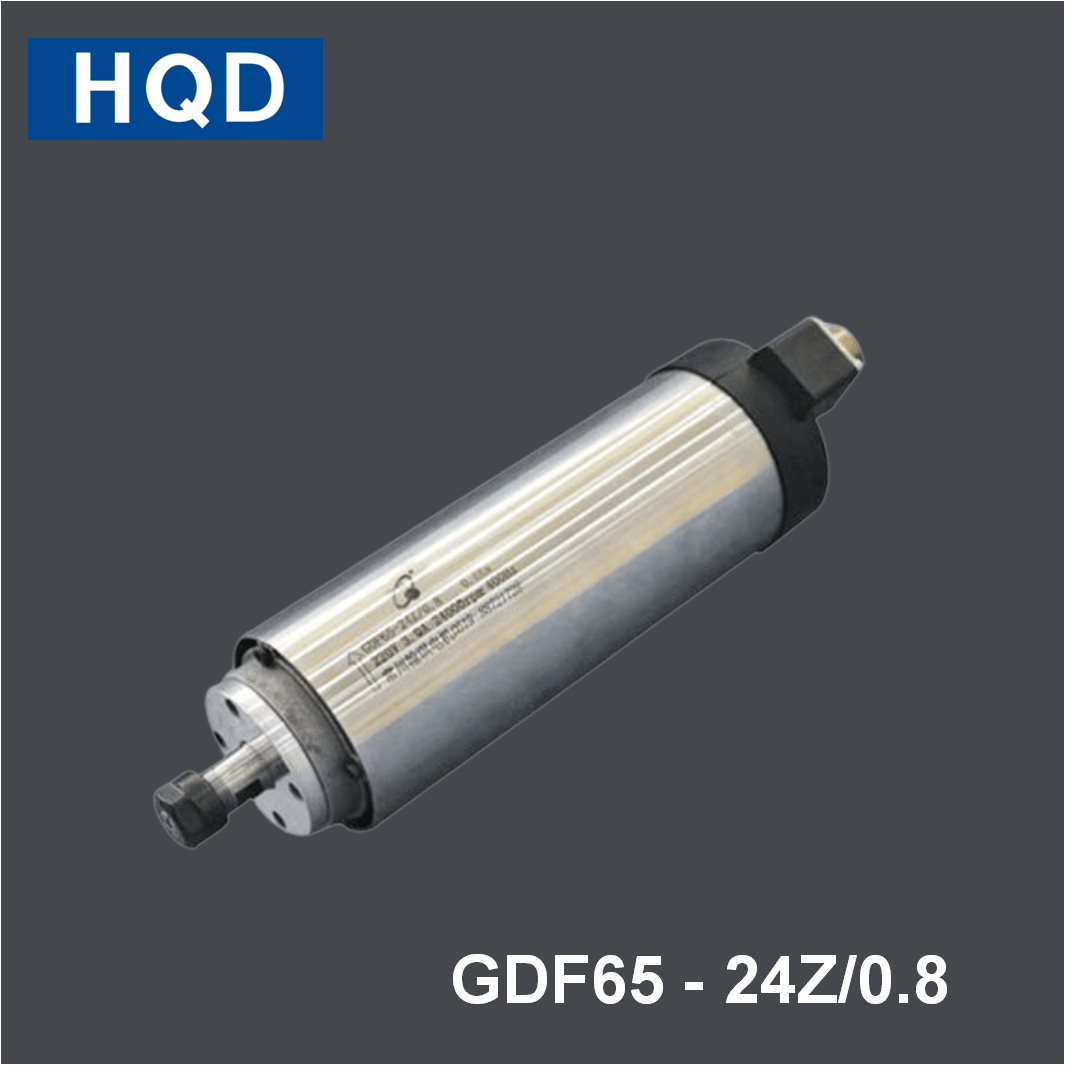

HQD GDF Woodworking Round Air-cooled Spindle GDF65-24Z/0.8

Specifications of HQD GDF Woodworking Round Air-cooled Spindle GDF65-24Z/0.8 are:

Rotating speed: 24000RPM
Rated power: 0.8KW
Torque: 0.22Nm
Voltage: 220/380V
Current: 3.0/1.6A
Frequency: 400HZ
Connection of spindle end: ER11-Φ3.175-Φ7.0
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7002C P4,2*7000C P4
Weight: 3.0Kg

Download Outline Diagram for HQD GDF Woodworking Round Air-cooled Spindle GDF65-24Z/0.8
