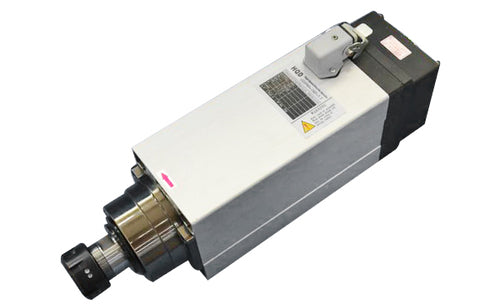

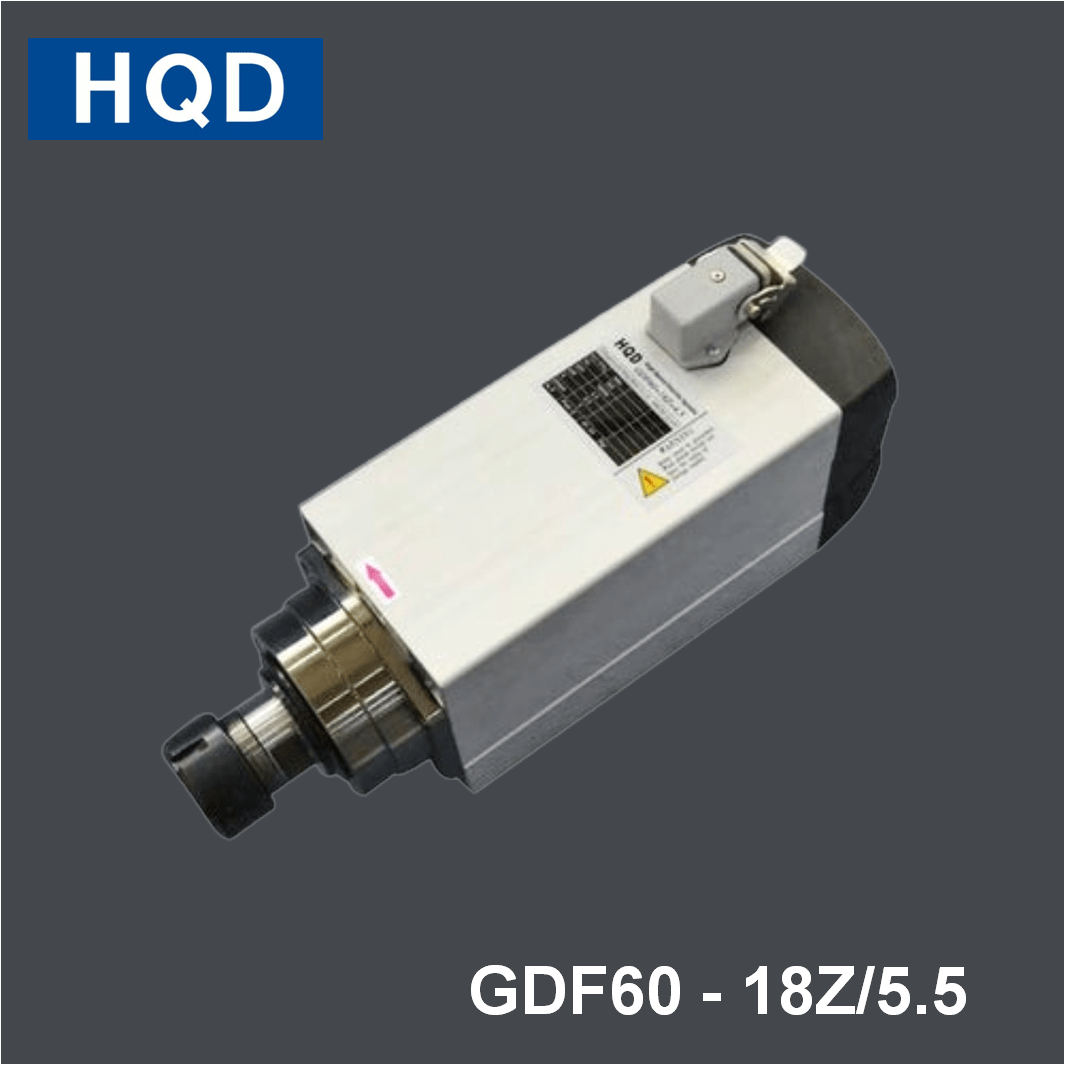

HQD GDF Woodworking Low-noise Air-cooled Spindle GDF60-18Z/5.5

Features of HQD GDF Woodworking Low-noise Air-cooled Spindle GDF60-18Z/5.5 are:

Rotating speed: 18000RPM
Rated power: 5.5KW
Torque: 2.65Nm
Voltage: 220/380V
Current: 21.5/12.5A
Frequency: 300HZ
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7008C P4,2*7002C P4
Weight: 13Kg

Download Outline Diagram for HQD GDF Woodworking Low-noise Air-cooled Spindle GDF60-18Z/5.5
