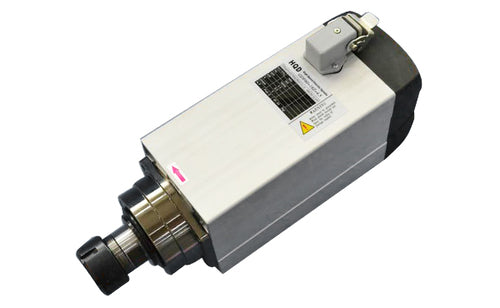

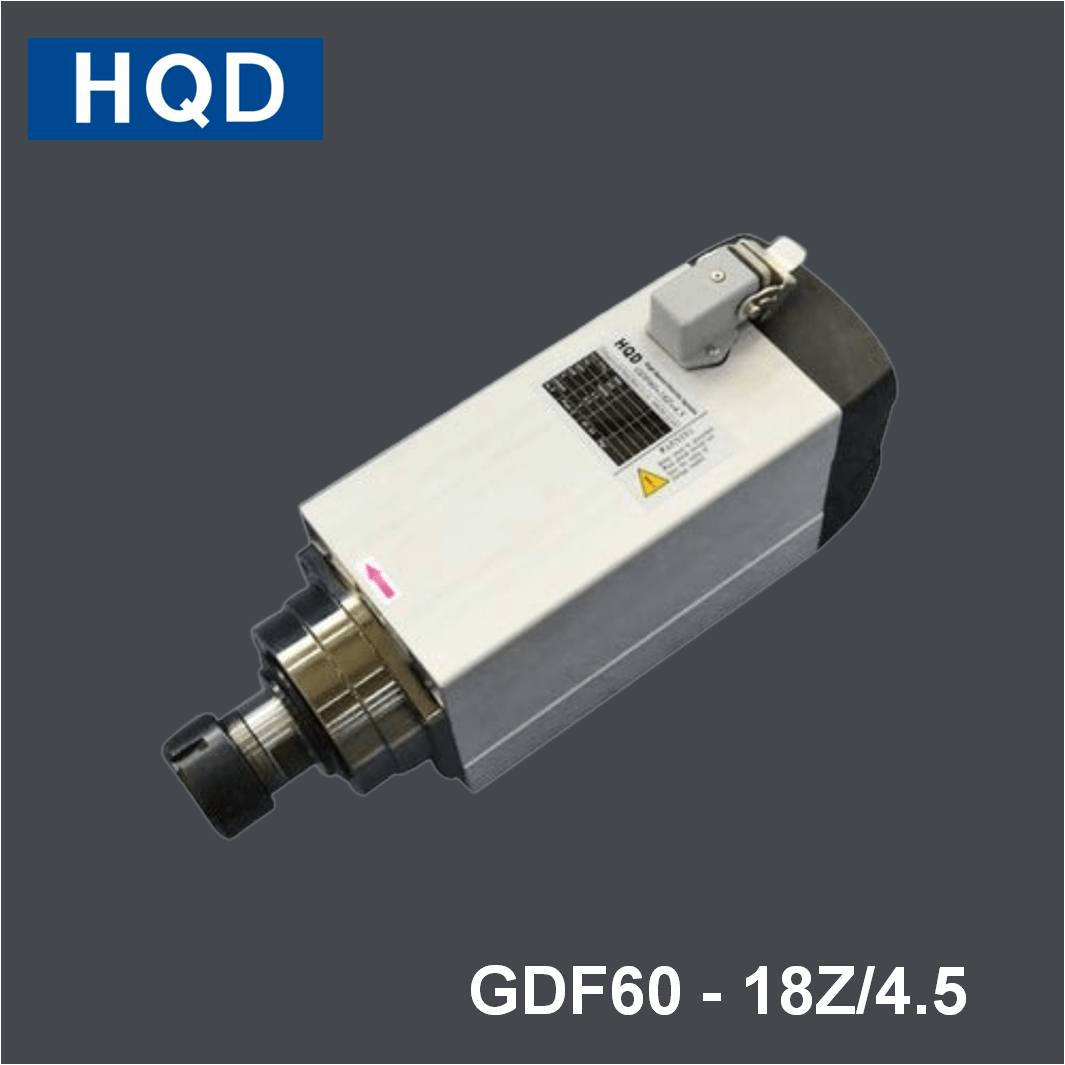

HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF60-18Z/4.5

Specifications of HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF60-18Z/4.5 are:

Rotating speed: 18000/24000RPM
Rated power: 4.5KW
Torque: 2.39/1.79Nm
Voltage: 220/380V
Current: 15/9.0A
Frequency: 300/400HZ
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7007C P4,2*7002C P4
Weight: 12Kg

Download Outline Diagram for HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF60-18Z/4.5
