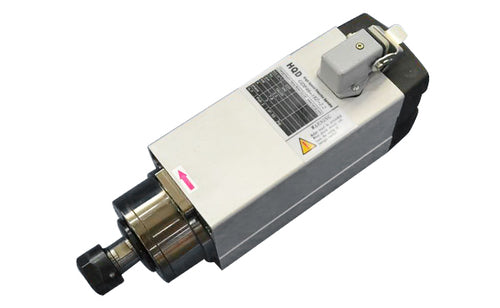

HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF46-18Z/2.2

Specifications of HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF46-18Z/2.2 are:

Rotating speed: 18000/24000RPM
Rated power: 2.2KW
Torque: 1.17/0.88Nm
Voltage: 220/380V
Current: 7.8/4.4A
Frequency: 300/400HZ
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7005C P4,1*7002C P4
Weight: 7Kg

Download Outline Diagram for HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF46-18Z/2.2
