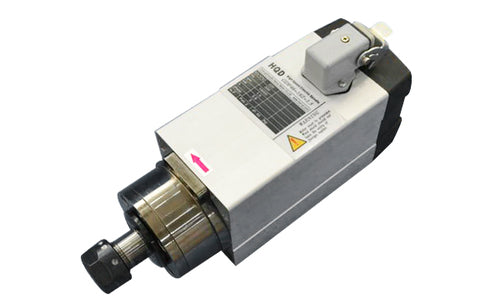

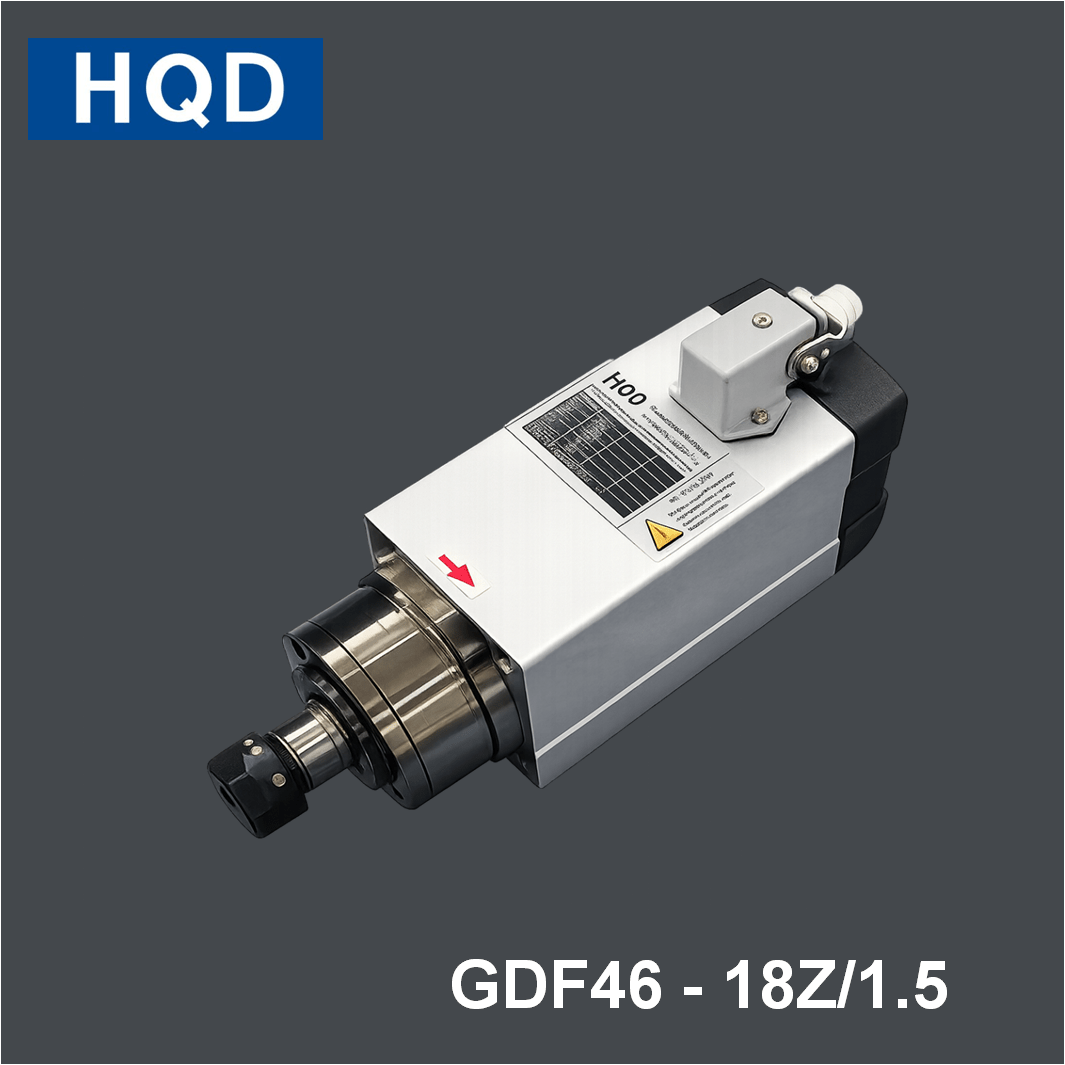

HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF46-18Z/1.5

Specifications of HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF46-18Z/1.5 are:

Rotating speed: 18000/24000RPM
Rated power: 1.5KW
Torque: 0.8/0.6Nm
Voltage: 220/380V
Current: 5.6/3A
Frequency: 300/400HZ
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2*7005C P4,1*7002C P4
Weight: 6Kg

Download Outline Diagram for HQD GDF Woodworking Air-cooled Mounting Base Spindle GDF46-18Z/1.5
