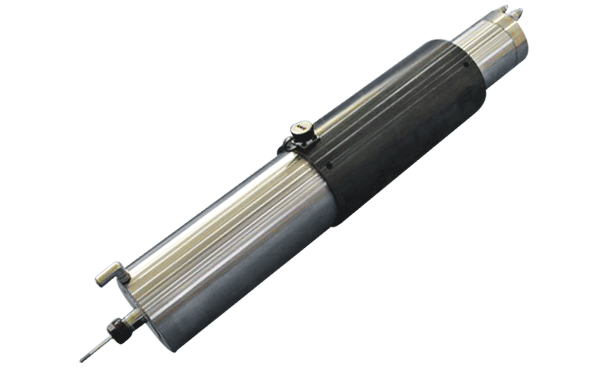

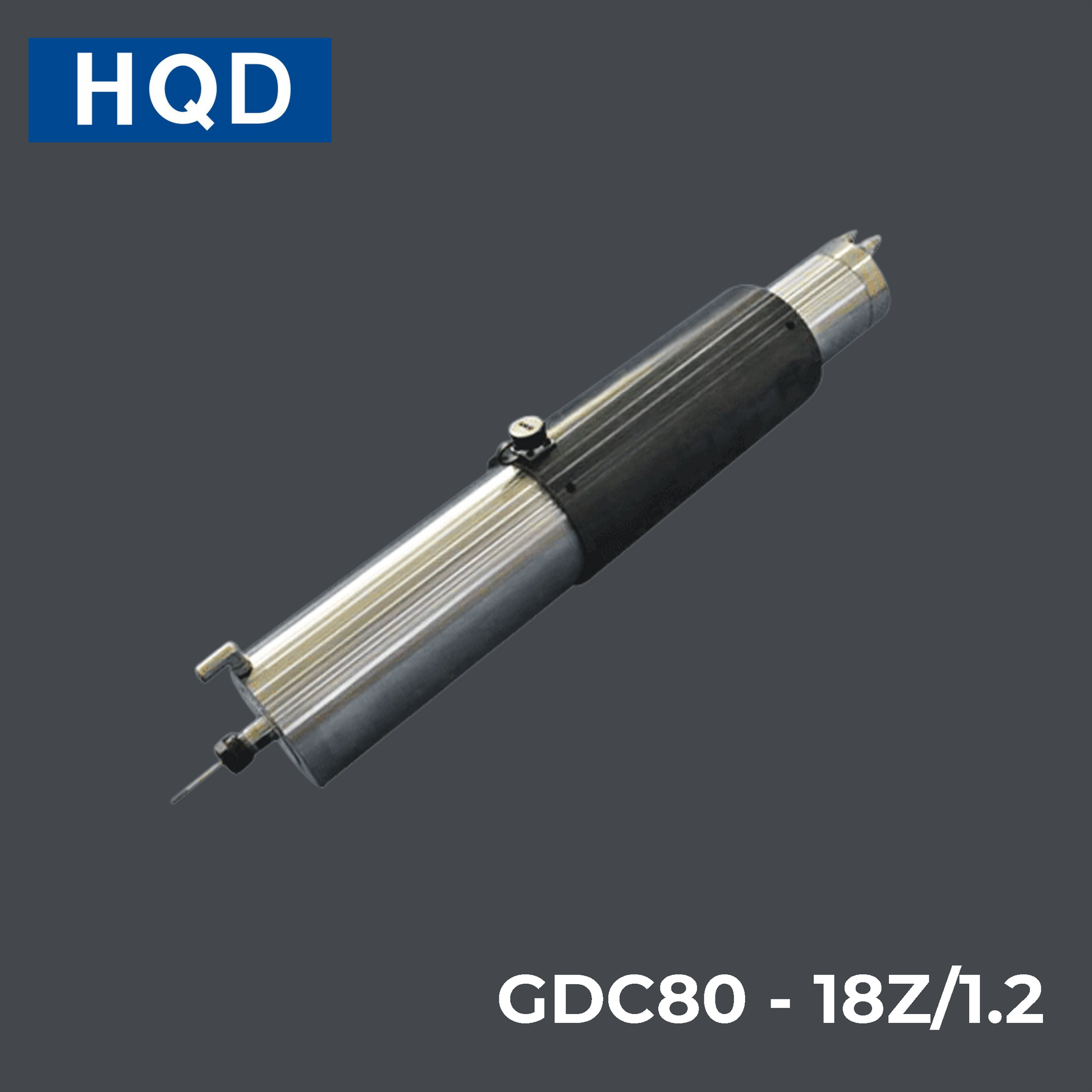

HQD GDC Ultrasonic Electric Spindle GDC80-18Z/1.2

Specifications of HQD GDC Ultrasonic Electric Spindle GDC80-18Z/1.2 are:

power: 1.2Kw
Rotating speed: 18000rpm
Voltage: 220V
Current: 4.2A
Frequency: 300Hz
Number of poles: 2pole
Specification of nut: ER11
Lubrication method: Grease
Cooling method: Water cooling
Bearing No.: 2x7906C/P4.2x7002C/P4
Weight: 15kg

Download Outline Diagram for HQD GDC Ultrasonic Electric Spindle GDC80-18Z/1.2
