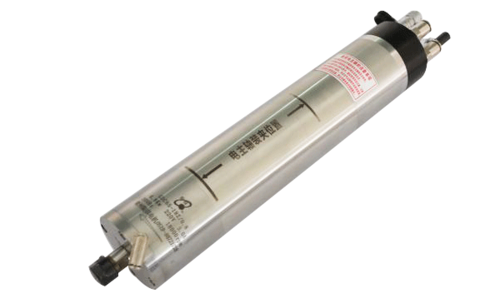

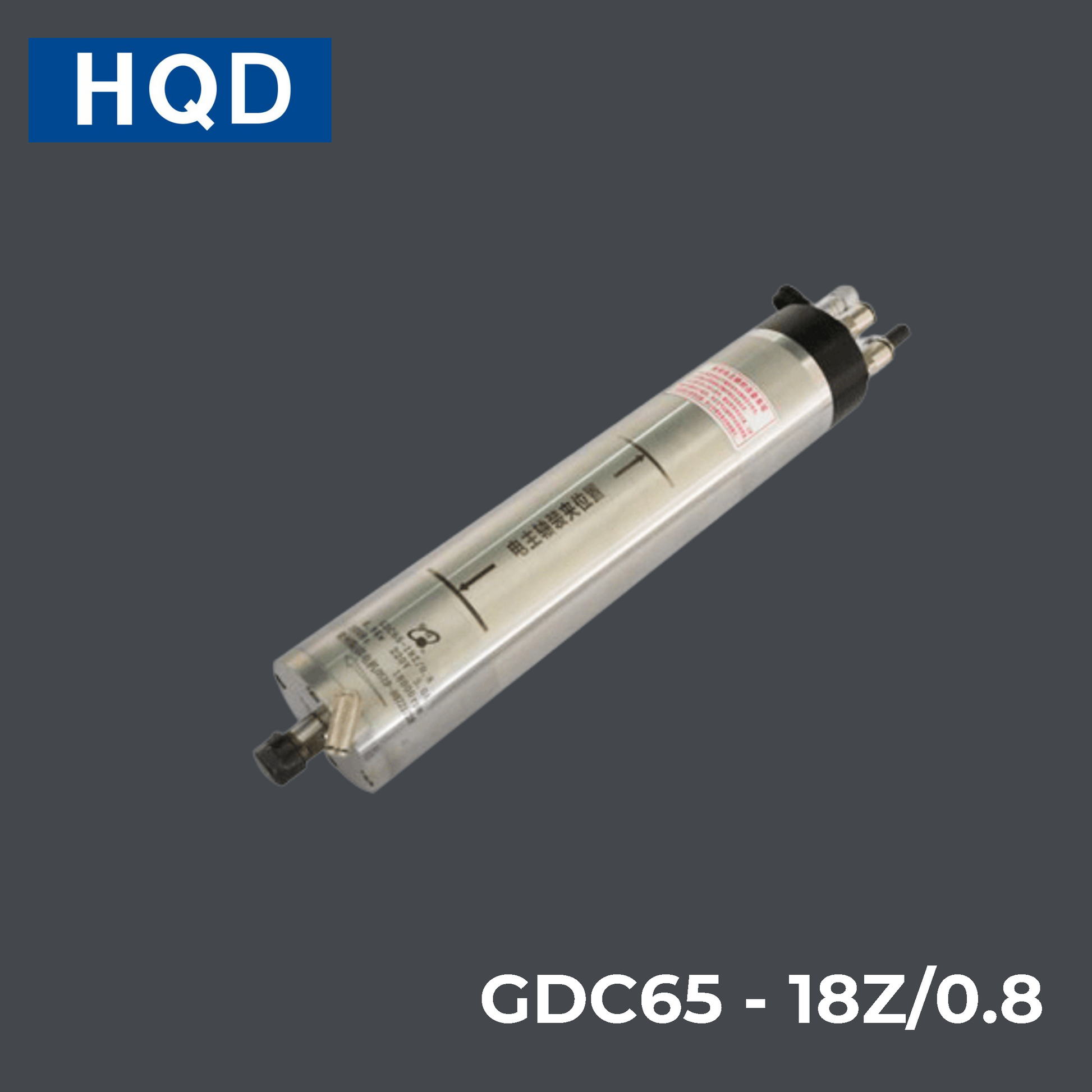

HQD GDC Ultrasonic Electric Spindle GDC65-18Z/0.8

Specifications of HQD GDC Ultrasonic Electric Spindle GDC65-18Z/0.8 are:

power: 0.8Kw
Rotating speed: 18000rpm
Voltage: 220V
Current: 3.0A
Frequency: 300Hz
Number of poles: 2pole
Specification of nut: ER11
Lubrication method: Grease
Cooling method: Water cooling
Bearing No.: 2x7906C/P4,2x7002C/P4
Weight: 6kg

Download Outline Diagram for HQD GDC Ultrasonic Electric Spindle GDC65-18Z/0.8
