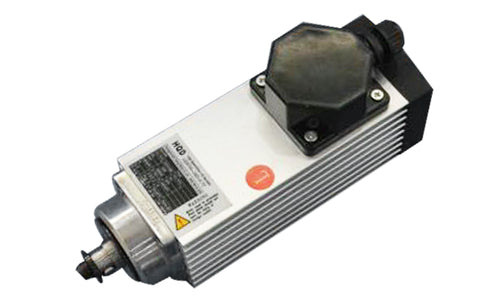

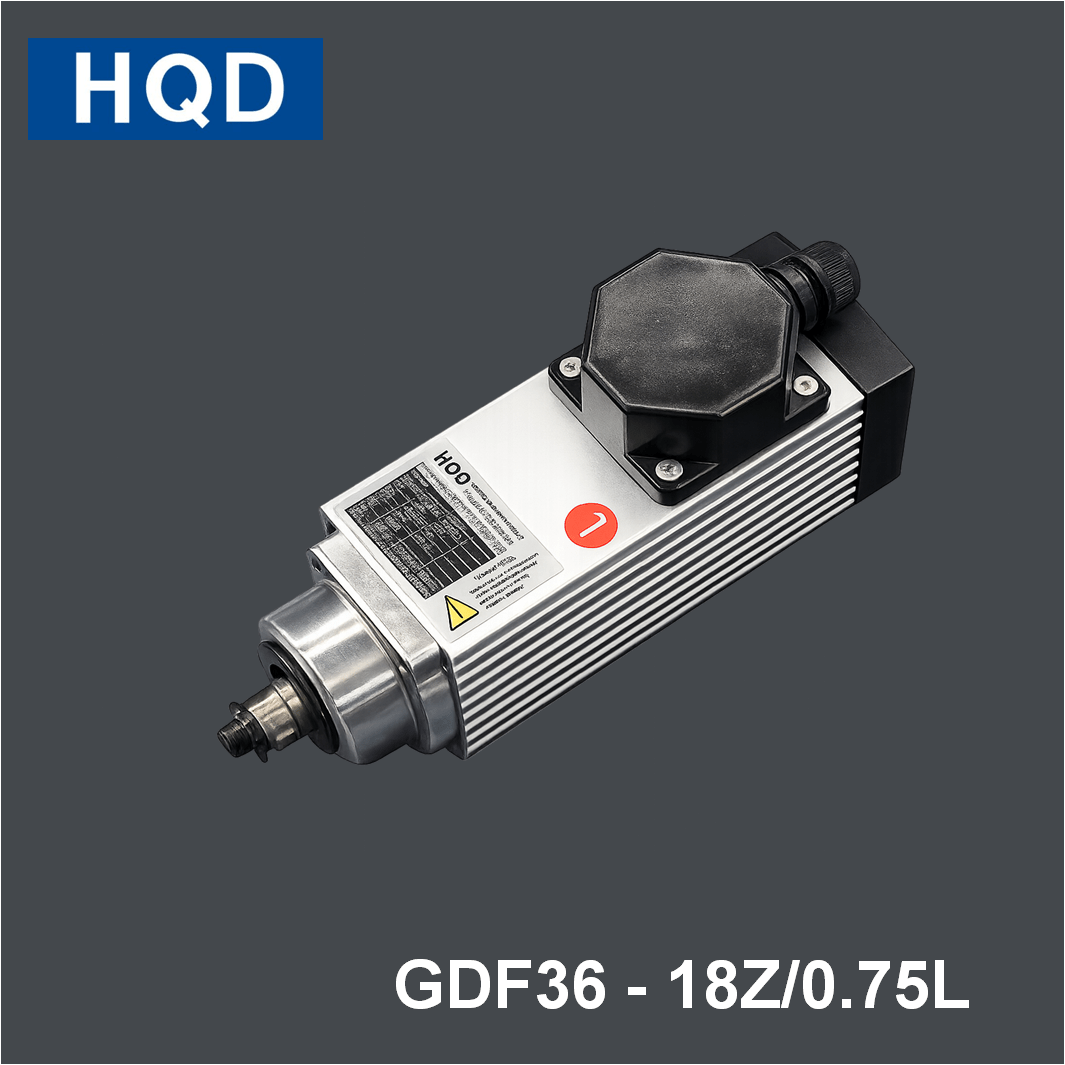

HQD GDF Edge Bander Electric Spindle GDF36-18Z/0.75L

Specifications of HQD GDF Edge Bander Electric Spindle GDF36-18Z/0.75L are:

Weight: 18000RPM
Power: 0.75KW
Torque: 0.4Nm
Voltage: 220/Y380V
Current: 3.9/2.3A
Frequency: 300HZ
Bearing: 1*6005VV P4/1*6000VV P4
Connection of spindle end: Φ16Cylindrical key5-M6Left tooth
Cooling method: fan
Lubrication method: Grease
Weight: 2.8K

Download Outline Diagram for HQD GDF Edge Bander Electric Spindle GDF36-18Z/0.75L
