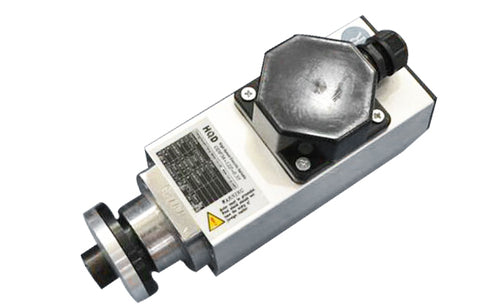

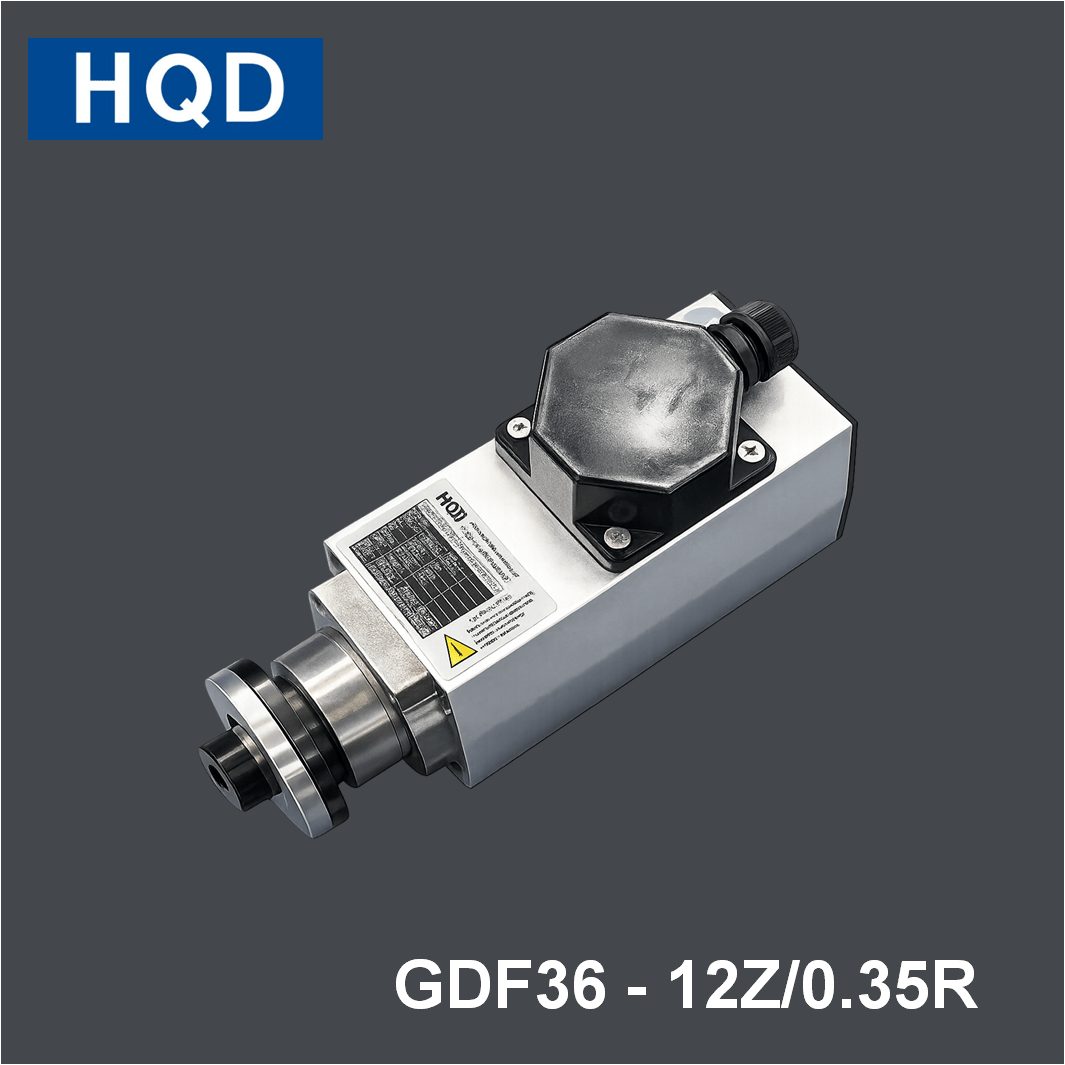

HQD GDF Edge Bander Electric Spindle GDF36-12Z/0.35R

Specifications of HQD GDF Edge Bander Electric Spindle GDF36-12Z/0.35R are:

Weight: 12000RPM
Power: 0.35KW
Torque: 0.28Nm
Voltage: 220/Y380V
Current: 1.8/1.1A
Frequency: 200HZ
Bearing: 1*6003VV P4/1*6000VV P4
Connection of spindle end: Φ15cylinder -M12 Right tooth
Cooling method: fan
Lubrication method: Grease
Weight: 2.3KG

Download Outline Diagram for HQD GDF Edge Bander Electric Spindle GDF36-12Z/0.35R
