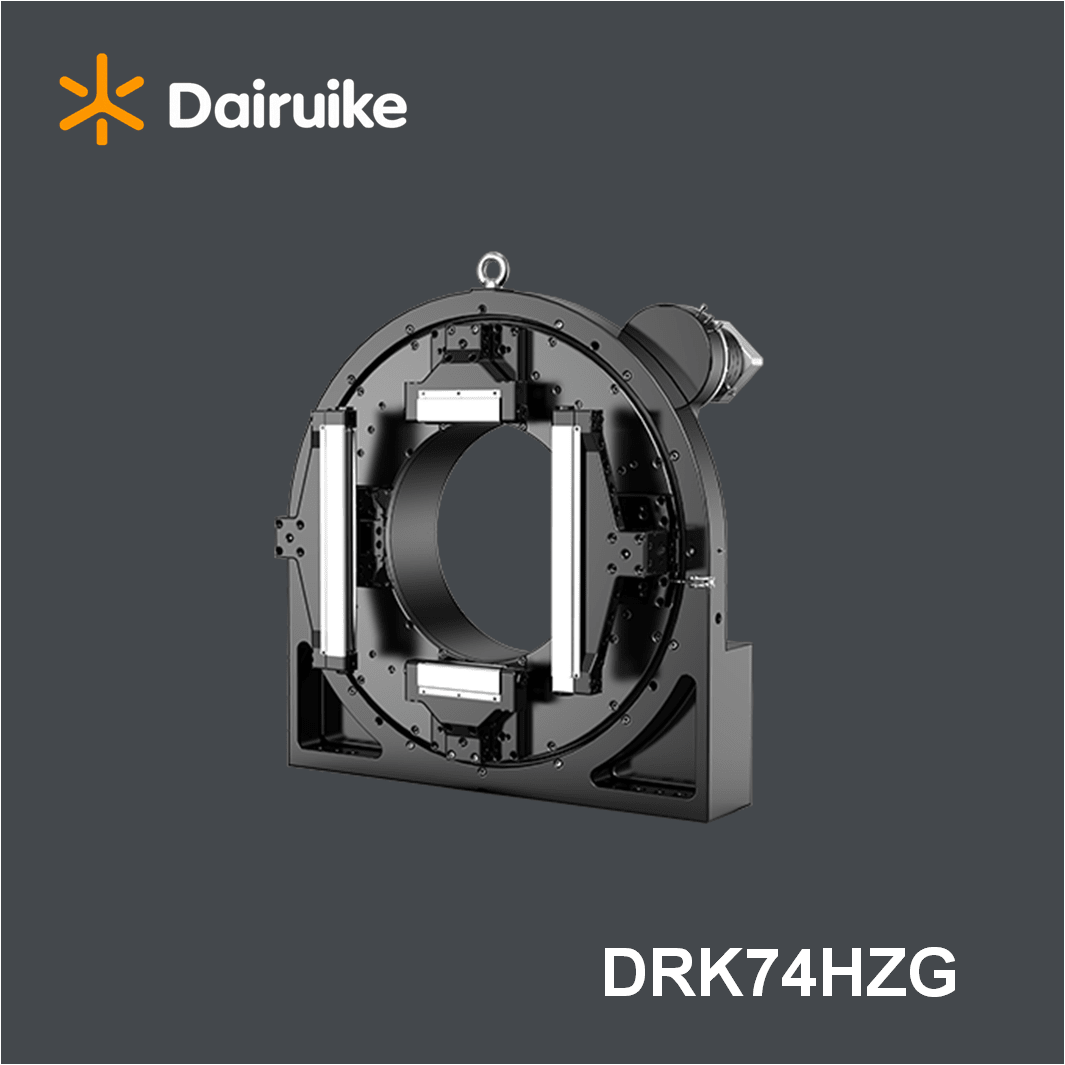

Dairuike 740 Laser Chuck DRK74HZG Laser Rotary Chuck - Front Chuck

The features of the Dairuike 740 Laser Chuck DRK74HZG Laser Rotary Chuck (Front Chuck) are:

High stability: Laser rotary chuck internal rack and pinion drive, transmission parts heat treatment is reasonable, to ensure long-term use without wear and tear, to protect the stability of precision.

Re-expanded processing range: laser rotary chuck diameter of the round hole is φ740mm, and the range of clamping pipes is as follows: diameter of round pipe φ100-φ730mm, length of square pipe 100-500mm, and specification of I-beam/channel steel 20-63.

Load-bearing is upgraded again: The laser rotary chuck supports the cutting of whole pipes up to 12m in length and 3t in weight.

One-piece casting: Front and rear laser rotary chuck reducer, all adopt one-piece casting, and bearing bearing seat strong connection, flange connection with high stability, safety and reliability, reducer bracket without the possibility of falling off.

Performance Parameters:
