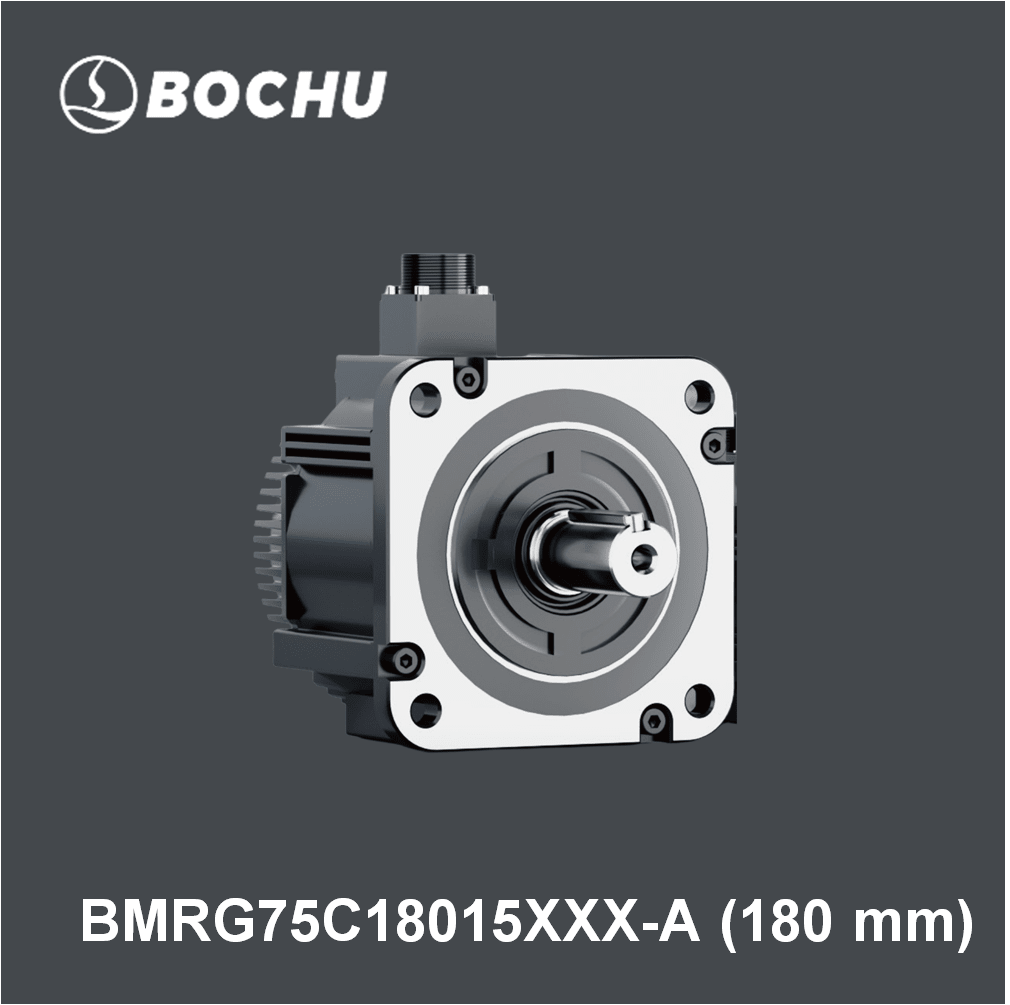

Bochu S9 Series High Speed Servo Motor BMRG75C18015XXX-A 180 mm

The Bochu S9 Series High Speed Servo Motor BMRG75C18015XXX-A 180 mm is the flagship 7.5kW high-inertia servo motor in the BMR series, engineered for large-scale industrial laser processing systems and heavy-duty automation machinery.

Designed for maximum torque and stability, it delivers exceptional performance under extreme operating conditions while maintaining precise motion control.

Specifications of Bochu S9 Series High Speed Servo Motor BMRG75C18015XXX-A 180 mm

• Rated Power: 7.5 kW
• Rated Voltage: 380V
• Frame Size: 180 mm
• Rated Speed: 1500 rpm
• Max Speed: 3000 rpm
• Rated Torque: 48 Nm
• Max Torque: 120 Nm
• Rated Current: 26 A
• Max Current: 65 A
• Rotational Inertia (without brake): 136.6 kgcm²
• Rotational Inertia (with brake): 142.6 kgcm²
