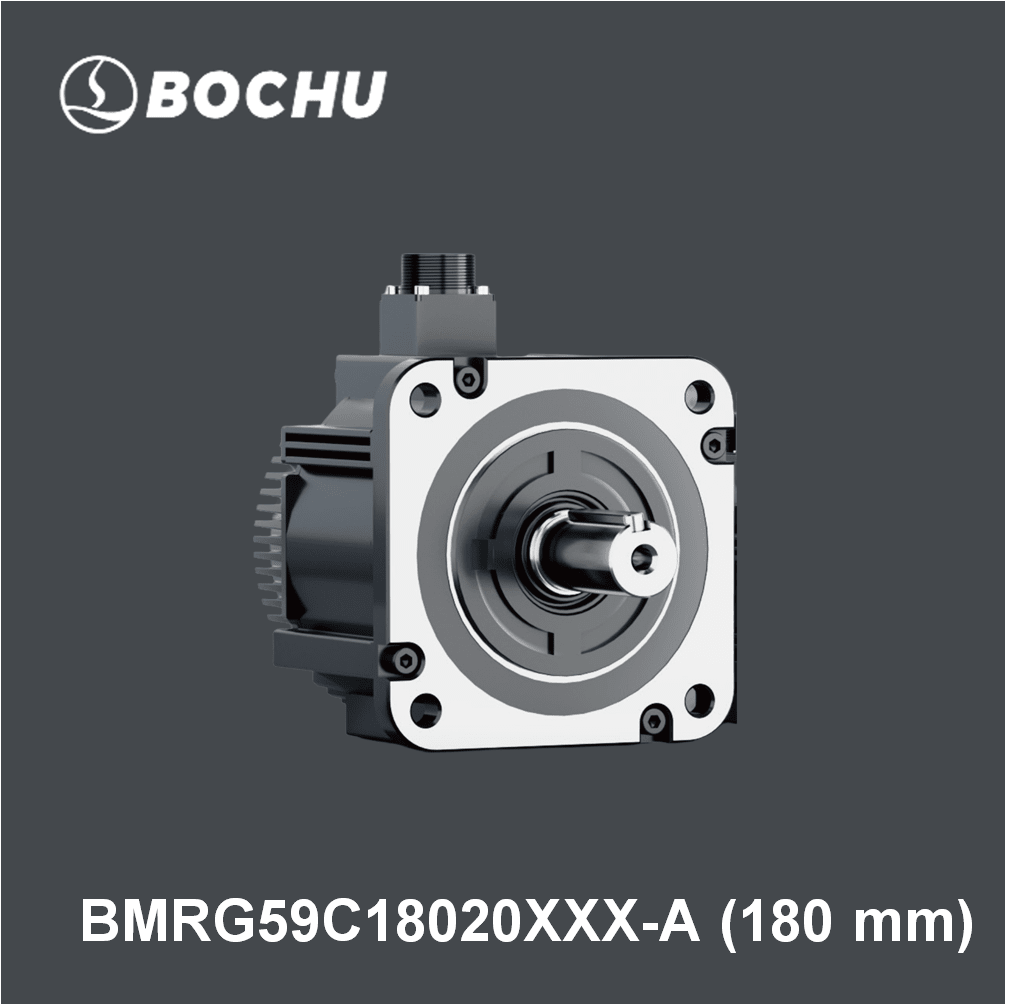

Bochu S9 Series High Speed Servo Motor BMRG59C18020XXX-A 180 mm

The Bochu S9 Series High Speed Servo Motor BMRG59C18020XXX-A 180 mm is a high-capacity 5.9kW servo motor built for demanding CNC and laser cutting operations requiring maximum reliability, high torque output, and smooth dynamic control.

Its advanced high-inertia design enhances machine stability during high-speed industrial processing.

Specifications of Bochu S9 Series High Speed Servo Motor BMRG59C18020XXX-A 180 mm

• Rated Power: 5.9 kW
• Rated Voltage: 380V
• Frame Size: 180 mm
• Rated Speed: 2000 rpm
• Max Speed: 5000 rpm
• Rated Torque: 28.4 Nm
• Max Torque: 85.2 Nm
• Rated Current: 21.9 A
• Max Current: 65.7 A
• Rotational Inertia (without brake): 88.5 kgcm²
• Rotational Inertia (with brake): 94.5 kgcm²
