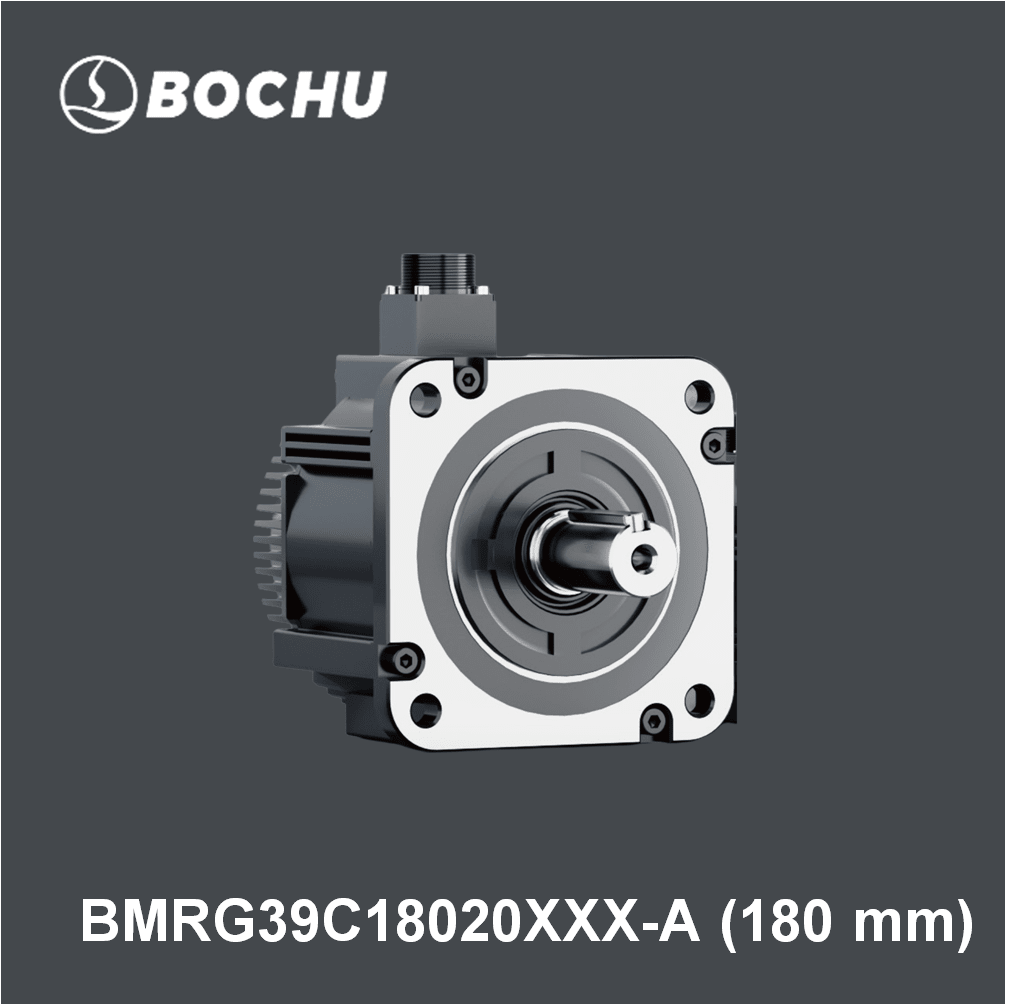

Bochu S9 Series High Speed Servo Motor BMRG39C18020XXX-A 180 mm

The Bochu S9 Series High Speed Servo Motor BMRG39C18020XXX-A 180 mm is a powerful 3.9kW industrial servo motor optimized for large-format laser cutting machines and high-load automation systems.

Its high-inertia architecture ensures smooth motion, excellent rigidity, and stable performance even during aggressive acceleration and deceleration cycles.

Specifications of Bochu S9 Series High Speed Servo Motor BMRG39C18020XXX-A 180 mm

• Rated Power: 3.9 kW
• Rated Voltage: 380V
• Frame Size: 180 mm
• Rated Speed: 2000 rpm
• Max Speed: 5000 rpm
• Rated Torque: 18.6 Nm
• Max Torque: 55.8 Nm
• Rated Current: 14.5 A
• Max Current: 42 A
• Rotational Inertia (without brake): 63.5 kgcm²
• Rotational Inertia (with brake): 69.5 kgcm²
