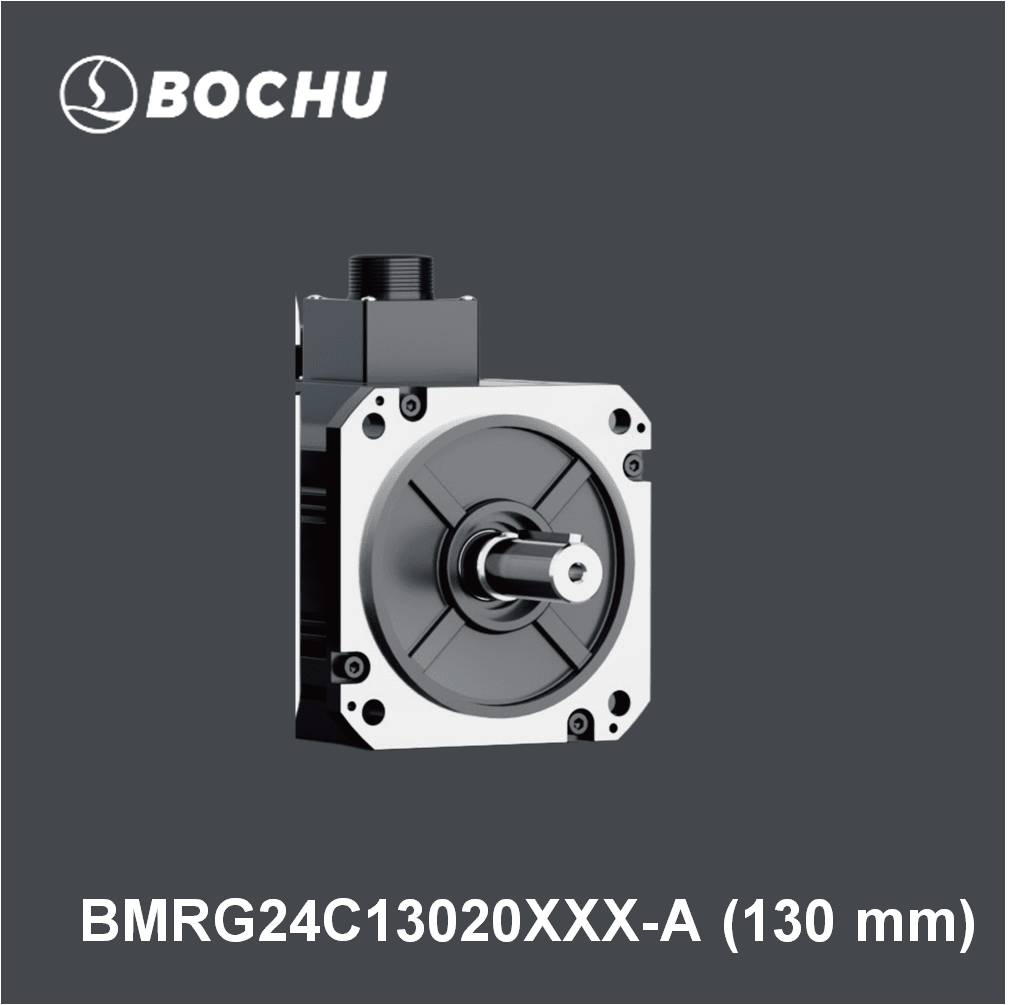

Bochu S9 Series High Speed Servo Motor BMRG24C13020XXX-A 130 mm

The Bochu S9 Series High Speed Servo Motor BMRG24C13020XXX-A 130 mm is a heavy-duty 2.4kW high-inertia servo motor designed for industrial laser processing equipment requiring high acceleration and exceptional motion stability.

Built for 380V systems, it delivers consistent torque output and reliable performance in high-load manufacturing environments.

Specifications of Bochu S9 Series High Speed Servo Motor BMRG24C13020XXX-A 130 mm

• Rated Power: 2.4 kW
• Rated Voltage: 380V
• Frame Size: 130 mm
• Rated Speed: 2000 rpm
• Max Speed: 5000 rpm
• Rated Torque: 11.5 Nm
• Max Torque: 32.2 Nm
• Rated Current: 9.5 A
• Max Current: 26.6 A
• Rotational Inertia (without brake): 21.4 kgcm²
• Rotational Inertia (with brake): 22.63 kgcm²
