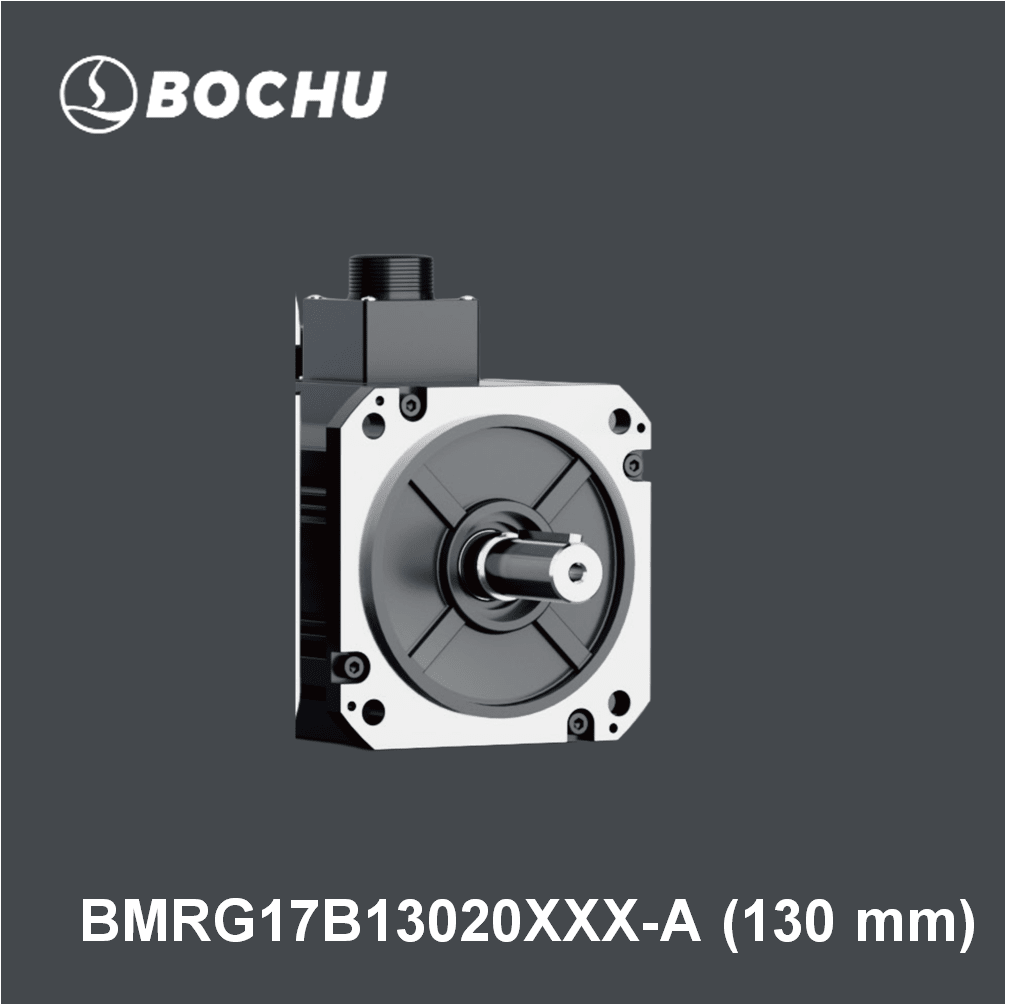

Bochu S9 Series High Speed Servo Motor BMRG17B13020XXX-A 130 mm

The Bochu S9 Series High Speed Servo Motor BMRG17B13020XXX-A 130 mm is a powerful 1.7kW high-inertia servo motor engineered for demanding laser cutting and motion control systems. It delivers high torque, rapid acceleration, and excellent positioning stability for precision industrial applications.

Specifications of Bochu S9 Series High Speed Servo Motor BMRG17B13020XXX-A 130 mm

• Rated Power: 1.7 kW
• Rated Voltage: 220V
• Frame Size: 130 mm
• Rated Speed: 2000 rpm
• Max Speed: 5000 rpm
• Rated Torque: 8.34 Nm
• Max Torque: 25.02 Nm
• Rated Current: 12 A
• Max Current: 36 A
• Rotational Inertia (without brake): 16.9 kgcm²
• Rotational Inertia (with brake): 18.13 kgcm²
