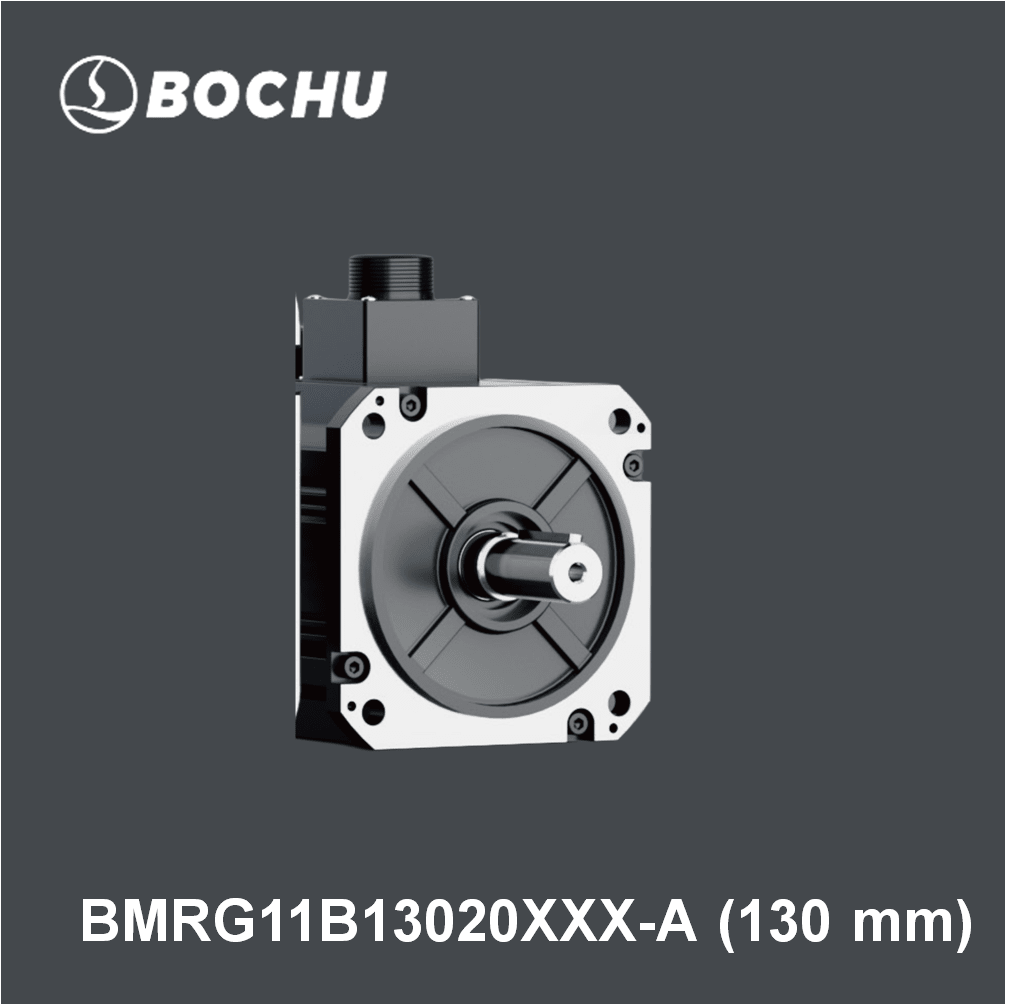

Bochu S9 Series High Speed Servo Motor BMRG11B13020XXX-A 130 mm

Bochu S9 Series High Speed Servo Motor BMRG11B13020XXX-A 130 mm is a robust 1.1kW high-inertia servo motor designed for industrial laser cutting systems requiring high precision, superior dynamic response, and stable high-speed operation.

Its optimized inertia matching improves contour accuracy and enhances machine responsiveness in complex cutting applications.

Specifications of Bochu S9 Series High Speed Servo Motor BMRG11B13020XXX-A 130 mm

• Motor Type: High-Inertia Servo Motor
• Rated Power: 1.1 kW
• Rated Voltage: 220V
• Frame Size: 130 mm
• Rated Speed: 2000 rpm
• Max Speed: 5000 rpm
• Rated Torque: 5.39 Nm
• Max Torque: 16.17 Nm
• Rated Current: 7.5 A
• Max Current: 22.5 A
• Rotational Inertia (without brake): 14.8 kgcm²
• Rotational Inertia (with brake): 16.03 kgcm²
