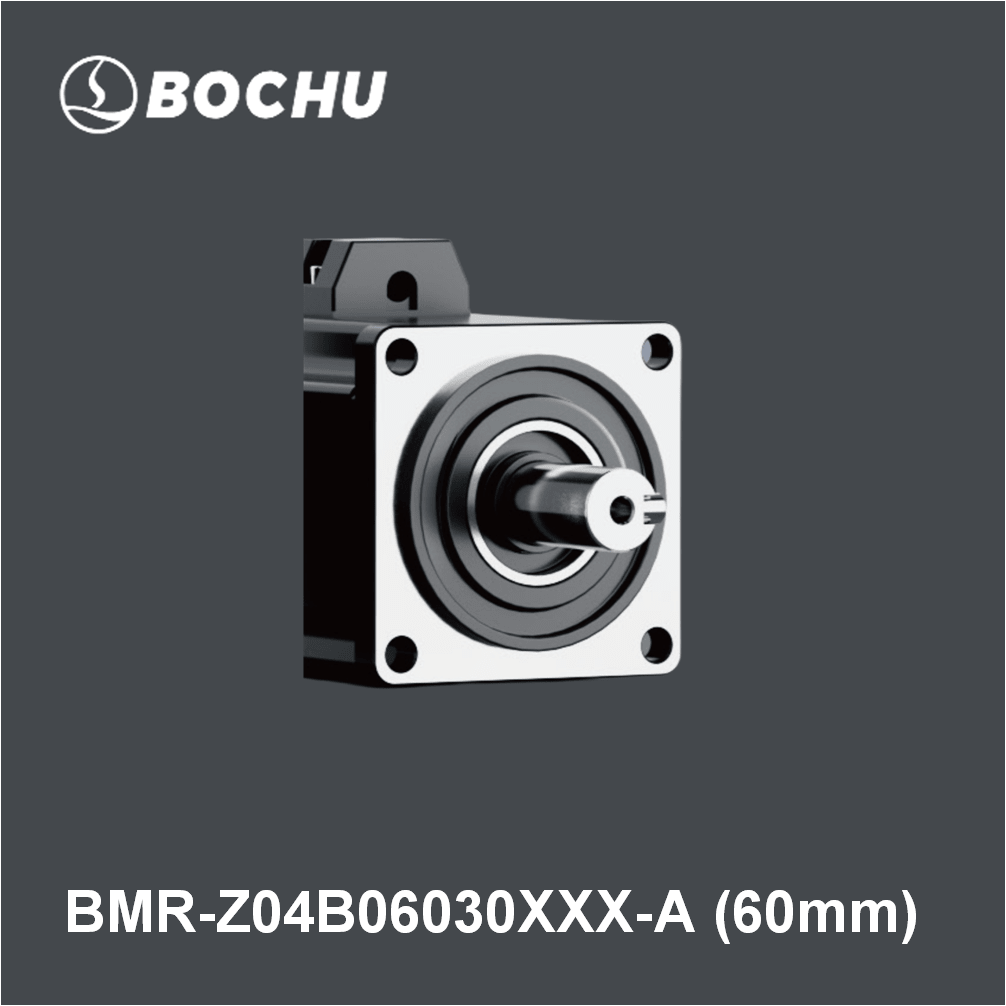

Bochu S9 Series High Speed Servo Motor BMR-Z04B06030XXX-A 60 mm

The Bochu S9 Series High Speed Servo Motor BMR-Z04B06030XXX-A 60 mm is a compact 400W medium-inertia servo motor designed for high-speed laser cutting and precision motion applications. Engineered for dynamic performance, this 60 mm servo motor delivers excellent responsiveness, smooth acceleration, and stable positioning accuracy.

With a maximum speed of 6000 rpm, it is ideal for lightweight axes, compact automation systems, and fast-moving CNC laser applications requiring high efficiency and reliability.

Specifications of Bochu S9 Series High Speed Servo Motor BMR-Z04B06030XXX-A 60 mm:

• Motor Type: Medium-Inertia Servo Motor
• Rated Power: 0.40 kW
• Rated Voltage: 220V
• Frame Size: 60 mm
• Rated Speed: 3000 rpm
• Max Speed: 6000 rpm
• Rated Torque: 1.27 Nm
• Max Torque: 3.81 Nm
• Rated Current: 2.8 A
• Max Current: 8.4 A
• Rotational Inertia (without brake): 0.53 kgcm²
• Rotational Inertia (with brake): 0.56 kgcm²
