Bochu FSCUT8000 2D Laser Cutting System Controller is a High-end intelligent EtherCAT bus controller designed for high power fiber laser above 8kW, featured by out of box service, easy to install and adjust, full solution functions, supports custom, automatic and digitization solutions.
Specifications & Components of Bochu FSCUT8000 2D Laser Cutting System Controller:

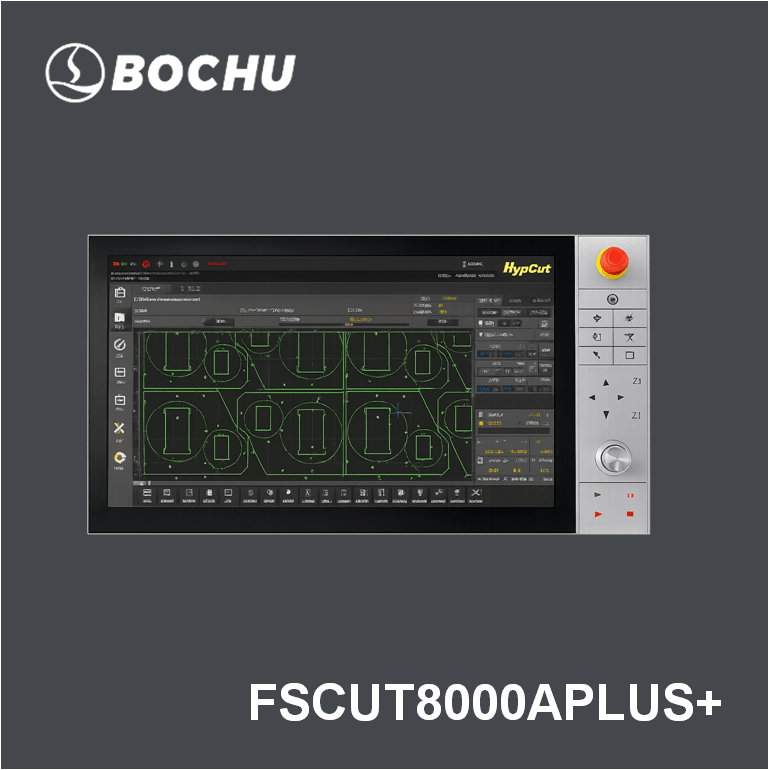

Model FSCUT8000APLUS+ :
AIO：HyPanel2_IAC2822W3
Terminal Board：BCL4568E
Remote Control:WKB-V6H

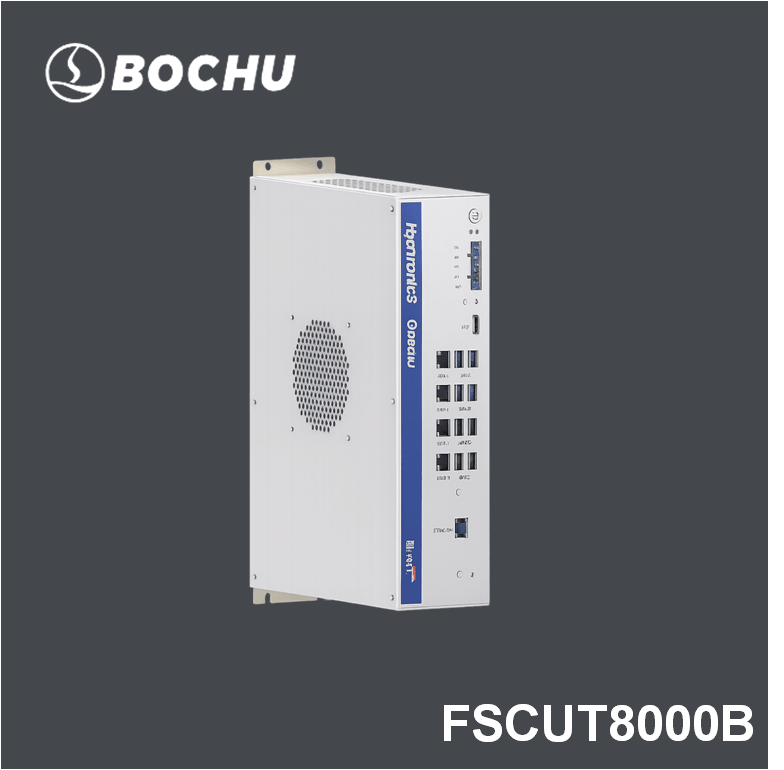

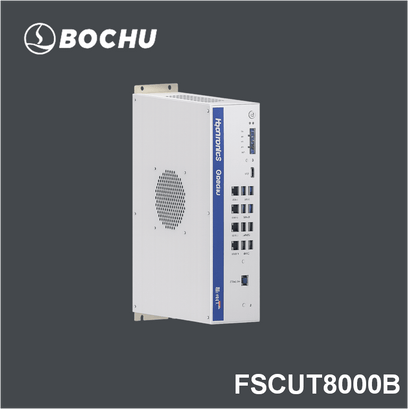

Model SCUT8000B:
EtherCAT Control Card: ：Hyptronic3
Terminal Board：BCL4568E
Remote Control:WKB-V6H

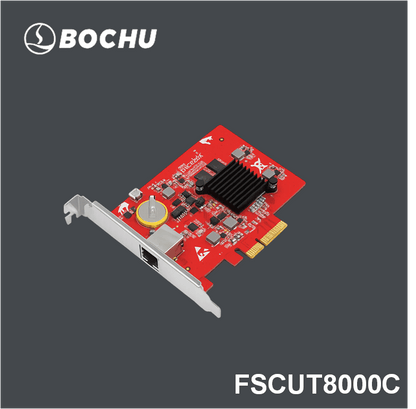

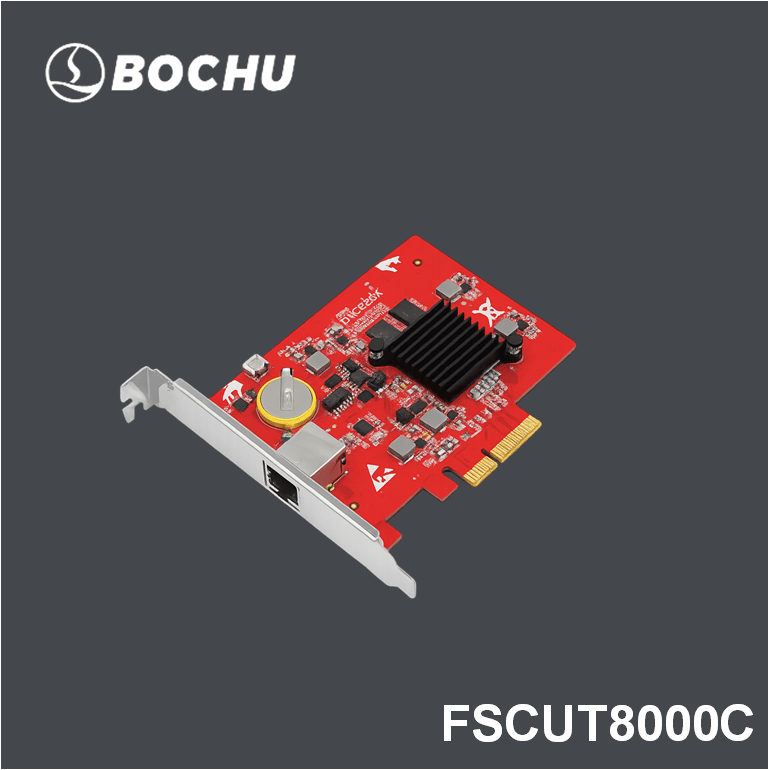

Model FSCUT8000C:
Control Card: ：BMC228B
Terminal Board：BCL4568E
Remote Control:WKB-V6H
Features of Bochu FSCUT8000 2D Laser Cutting System Controller:
Intelligent and comprehensive solutions for 2D laser cutting power range above 10kW, widely applied in steel structure, towers and shipyards
The portfolio includes high power EtherCAT laser cutting controller FSCUT8000 and intelligent cutting head BLT642H, supported power up to 15kW.
Stage-9 Piercing: Support ultra-thick plate piercing with better performance.
Smart Laser Off: Monitor the processing to smartly turn off the laser, realize a slag-free cutting with no gap.
Smooth Micro Joint: Realize tiny smooth Micro Joint in continuous processing, ensure both good performance and high efficiency, meanwhile unloading friendly.
Auto Recut: When real-time in-head sensor detects the plate was not cut through, the cutting head will automatically do recut.
Cutting Path Monitor: Intelligent adjustment of focus to ensure consistent cutting results over a long period of time.
Smart Piercing: The cutting head starts to cut immediately after piercing was done, the whole process is rather efficient.
