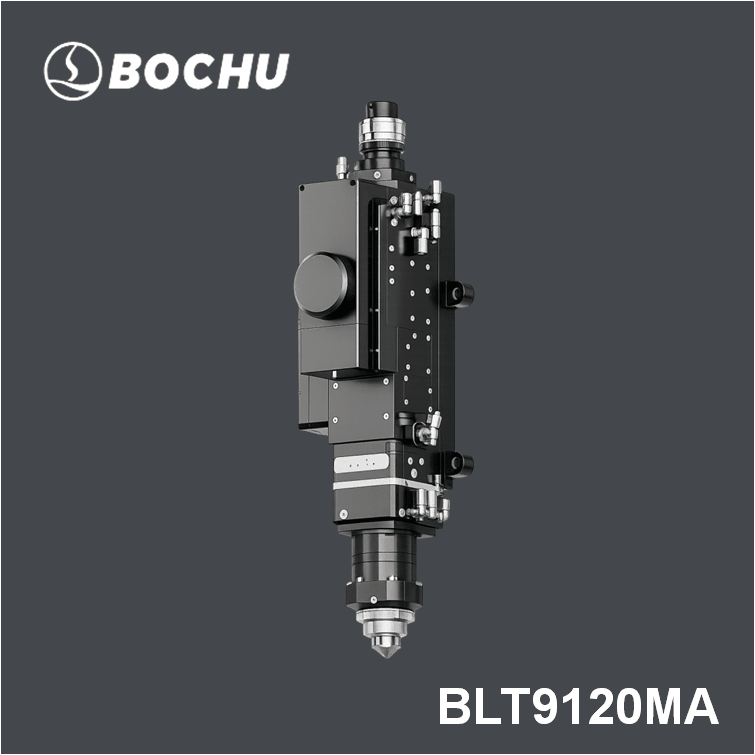

Bochu Boci BLT9 Series BLT9120MA 2D Laser Cutting Head

The Bochu Boci BLT9 Series BLT9120MA 2D Laser Cutting Head offers high-precision and efficient cutting with advanced features such as variable beam shaping, real-time focus centering, and quick focus adjustment. It also includes cutting path monitoring and auto recut to ensure consistent accuracy and reliable performance.

Specifications of Bochu Boci BLT9 Series BLT9120MA 2D Laser Cutting Head:

• Power Range: ≤60 kW
• Focal Length: 250/450 mm
• Focus Point Size: M1=2.5/M2=4.5
• Interface: Q+/ADD
• Focus Speed: 500 mm/s
• Extended Focus Range: +60 ~ -150 mm
• Precision: ±0.01 mm
• Wavelength: 1030–1090 nm
• Gas Pressure: 25 Bar
