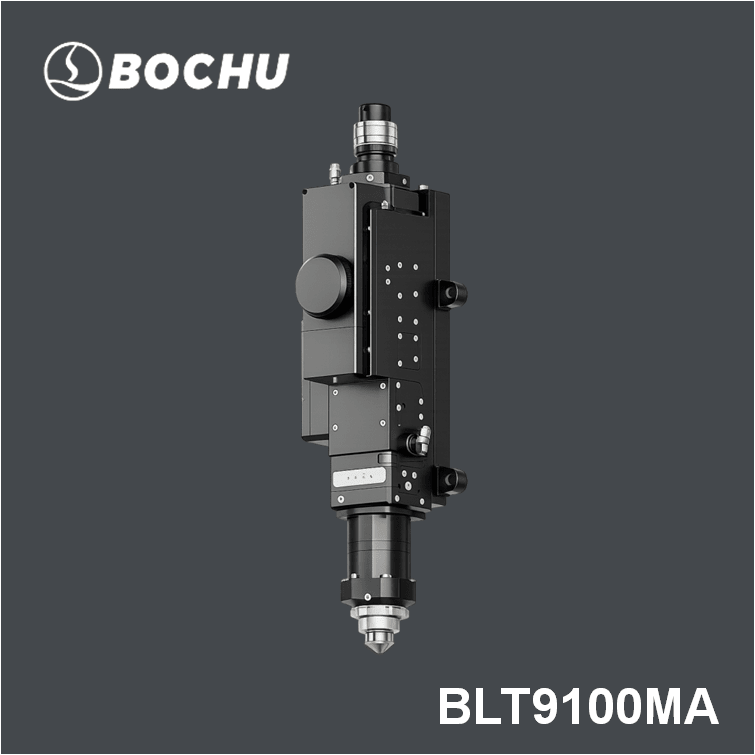

Bochu Boci BLT9 Series BLT9100MA 2D Laser Cutting Head

The Bochu Boci BLT9 Series BLT9100MA 2D Laser Cutting Head delivers precise and efficient cutting, featuring variable beam shaping, real-time focus centering, and rapid focus adjustment. With cutting path monitoring and auto recut, it ensures consistent accuracy and dependable operation.

Specifications of Bochu Boci BLT9 Series BLT9100MA 2D Laser Cutting Head:

• Power Range: ≤40 kW
• Focal Length: 200/400 mm
• Focus Point Size: M1=2.0/M2=4.0
• Interface: Q+/ADD
• Focus Speed: 500 mm/s
• Extended Focus Range: +60 ~ -150 mm
• Precision: ±0.01 mm
• Wavelength: 1030–1090 nm
• Gas Pressure: 25 Bar
