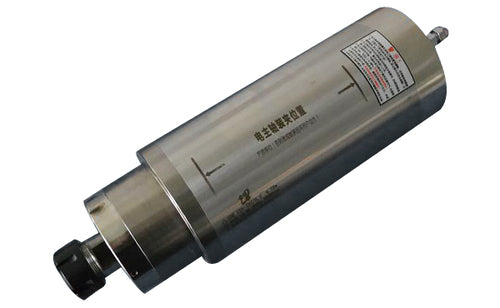

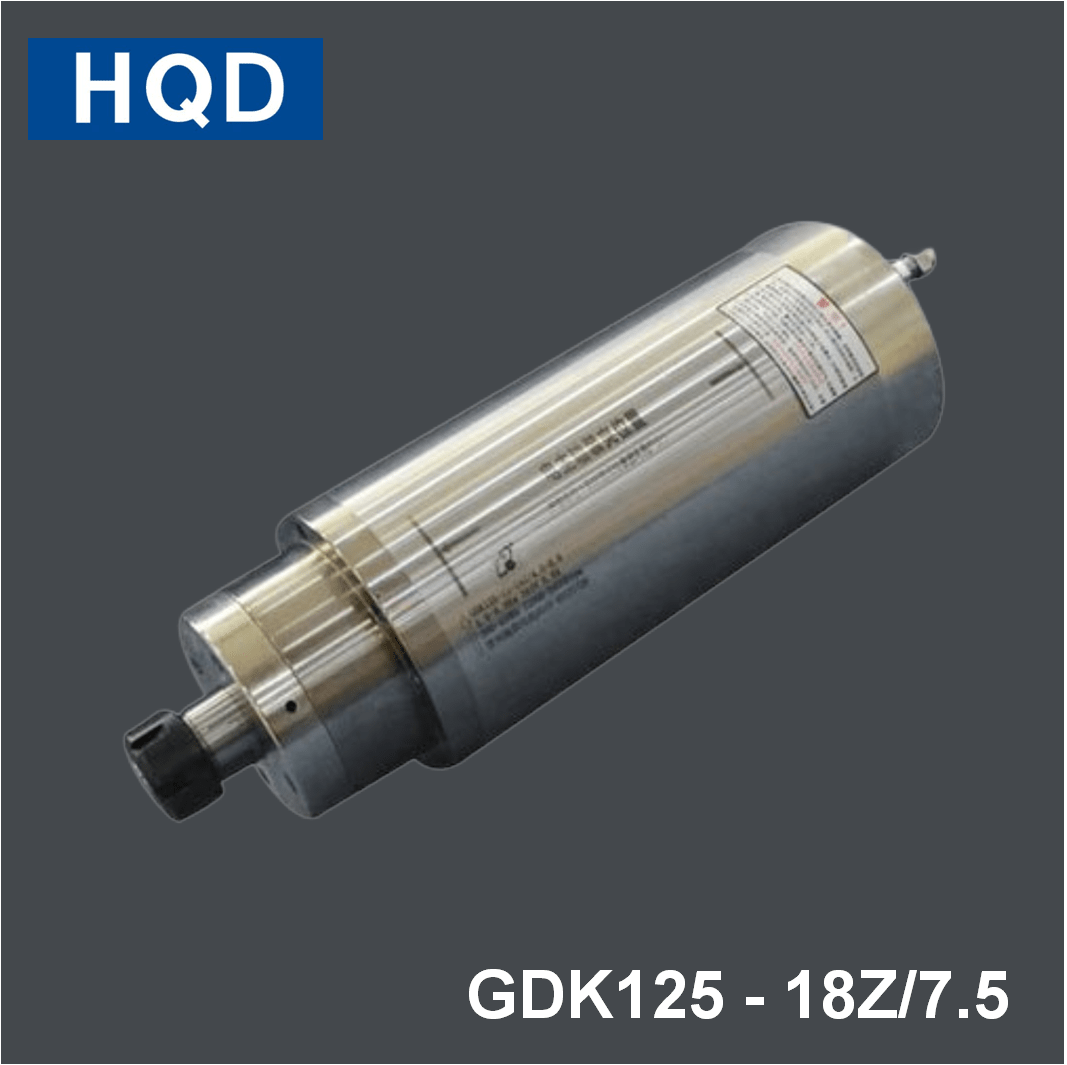

HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/7.5

Specifications of HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/7.5 are:

Rotating speed: 18000RPM
Rated power: 7.5KW
Torque: 3.98Nm
Voltage: 220/380V
Current: 28/16A
Frequency: 900HZ
Number of poles: 6P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4,2X7005C P4
Weight: 31Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Torque Spindle GDK125-18Z/7.5
