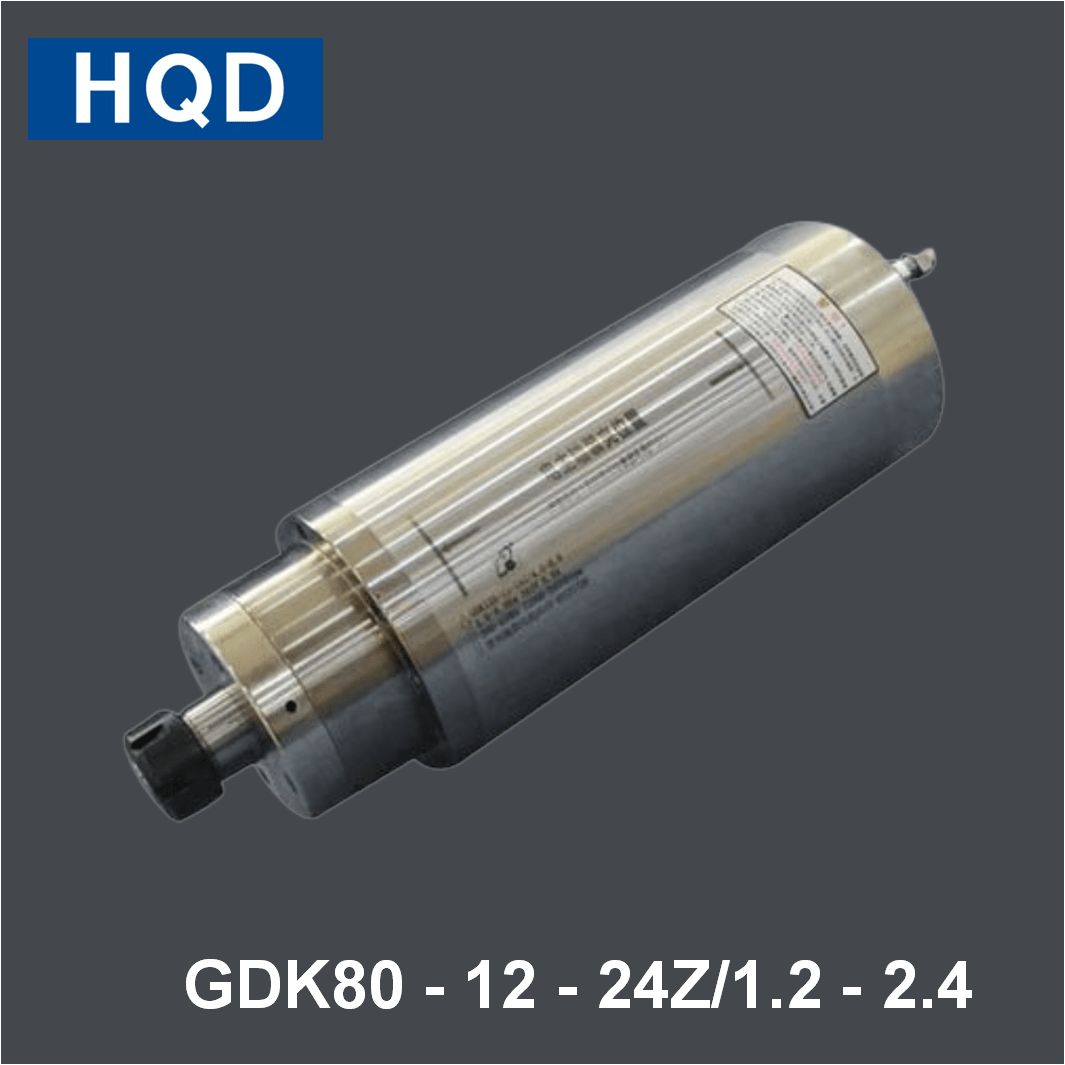

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK80-12-24Z/1.2-2.4

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK80-12-24Z/1.2-2.4 are:

Rotating speed: 12000-24000RPM
Rated power: 1.2KW
Torque: 0.96-0.48Nm
Voltage: 156-220V
Current: 6.4A
Frequency: 400-800HZ
Number of poles: 4P
Connection of spindle end: ER20-Φ3.175-Φ13
Cooling: Water cooling
Lubrication: Water cooling
Bearing No.: 2X7005C P4,2X7002C P4
Weight: 8Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK80-12-24Z/1.2-2.4
