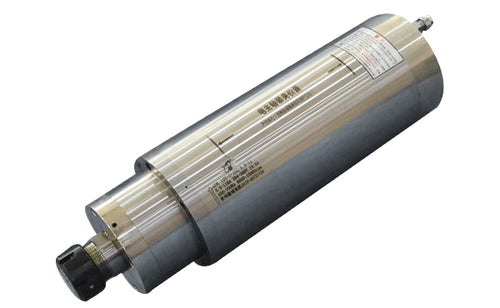

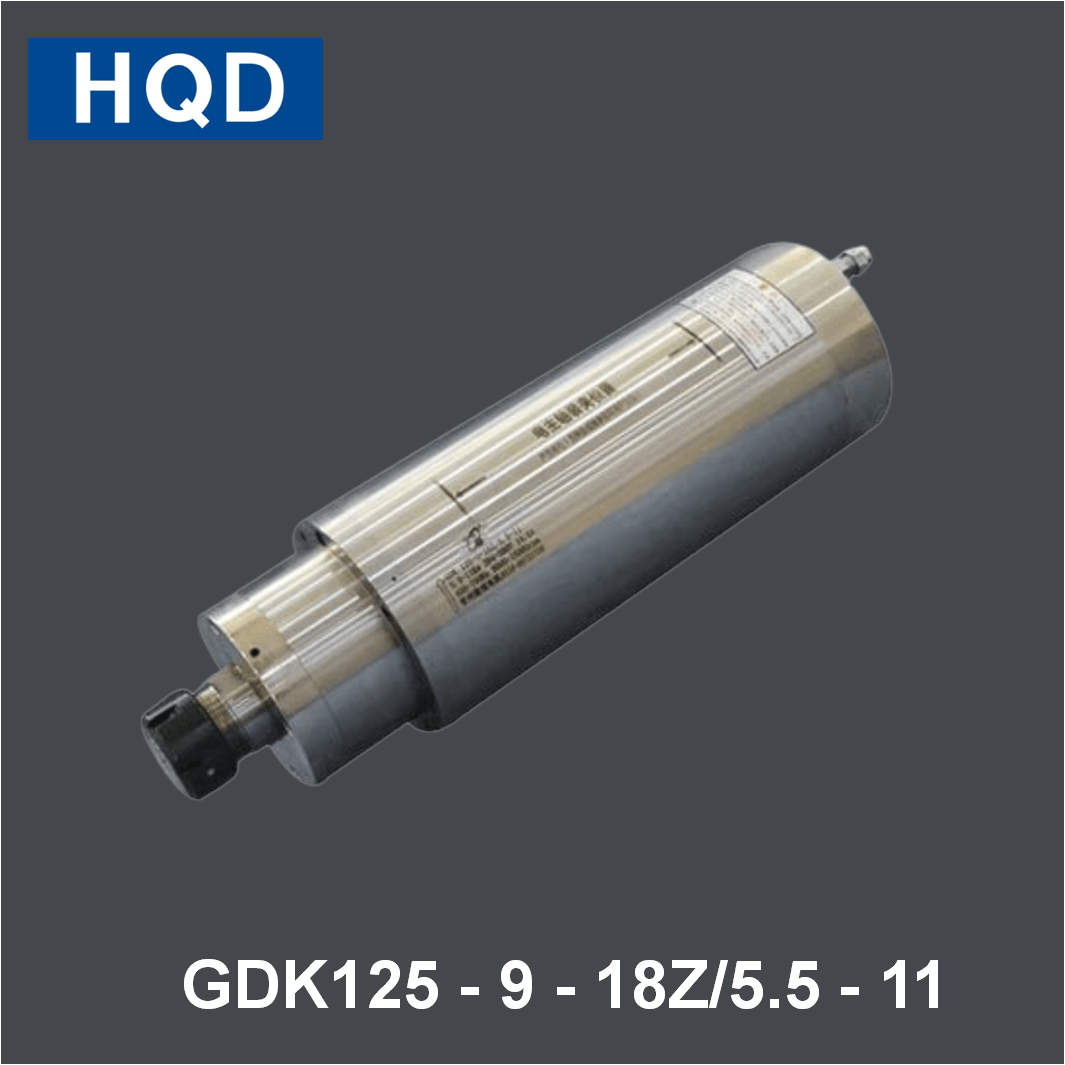

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-18Z/5.5-11

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-18Z/5.5-11 are:

Rotating speed: 9000-18000RPM
Rated power: 5.5KW
Torque: 5.84-2.92Nm
Voltage: 269-380V
Current: 15.5A
Frequency: 450-900HZ
Number of poles: 6P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4，2X7005C P4
Weight: 31Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-18Z/5.5-11
