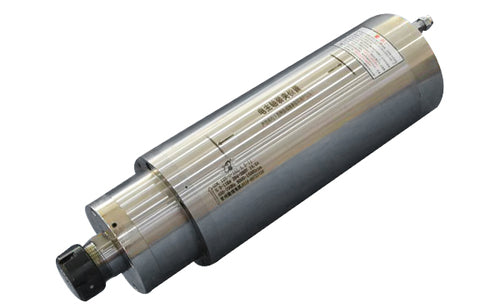

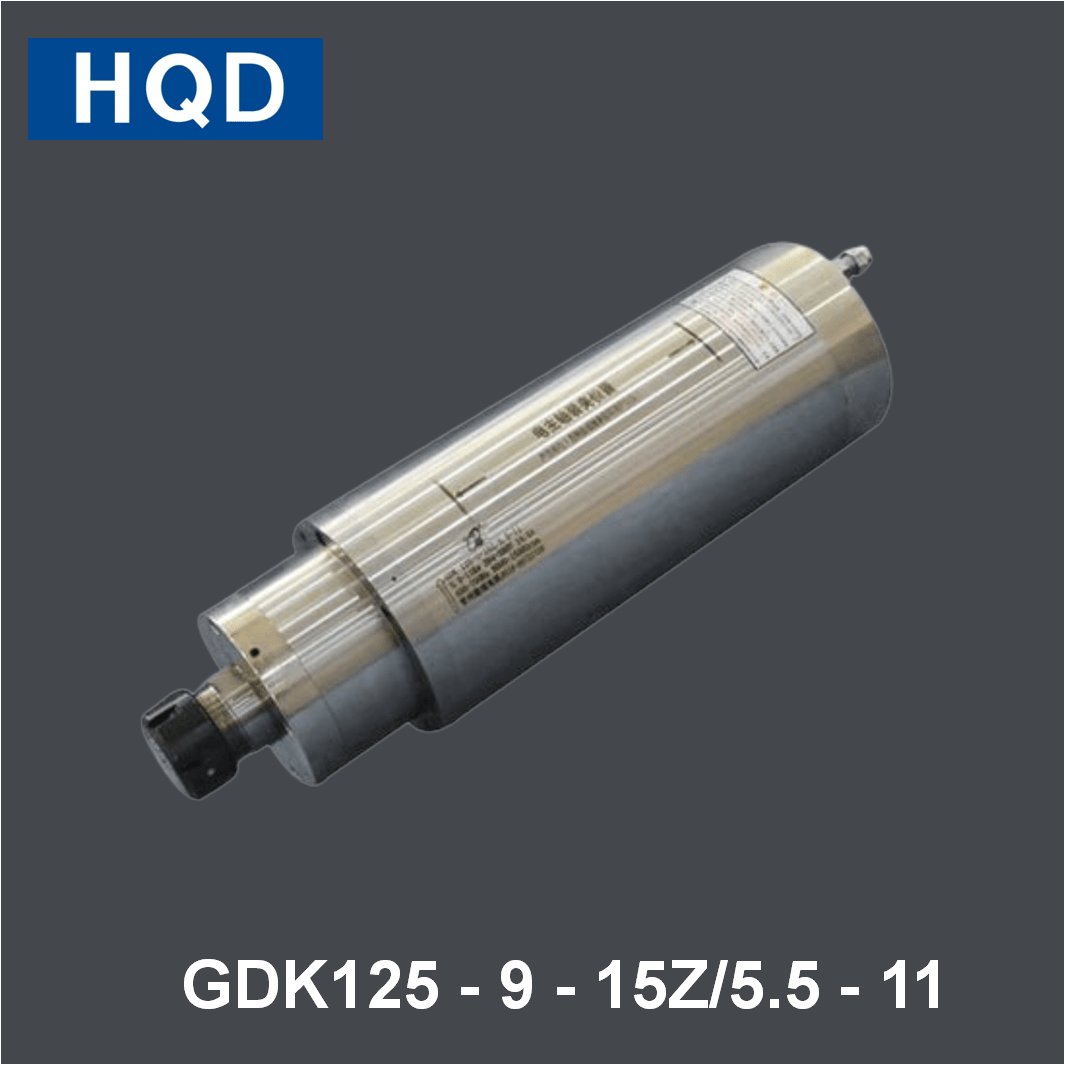

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-15Z/5.5-11

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-15Z/5.5-11 are:

Rotating speed: 9000-15000RPM
Rated power: 5.5KW
Torque: 5.84-3.5Nm
Voltage: 294-380V
Current: 14.0A
Frequency: 450-750HZ
Number of poles: 6P
Connection of spindle end: ER32-Φ3.175-Φ20
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7009C P4，2X7005C P431
Weight: 31Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK125-9-15Z/5.5-11
