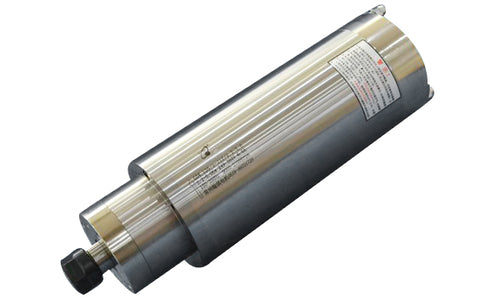

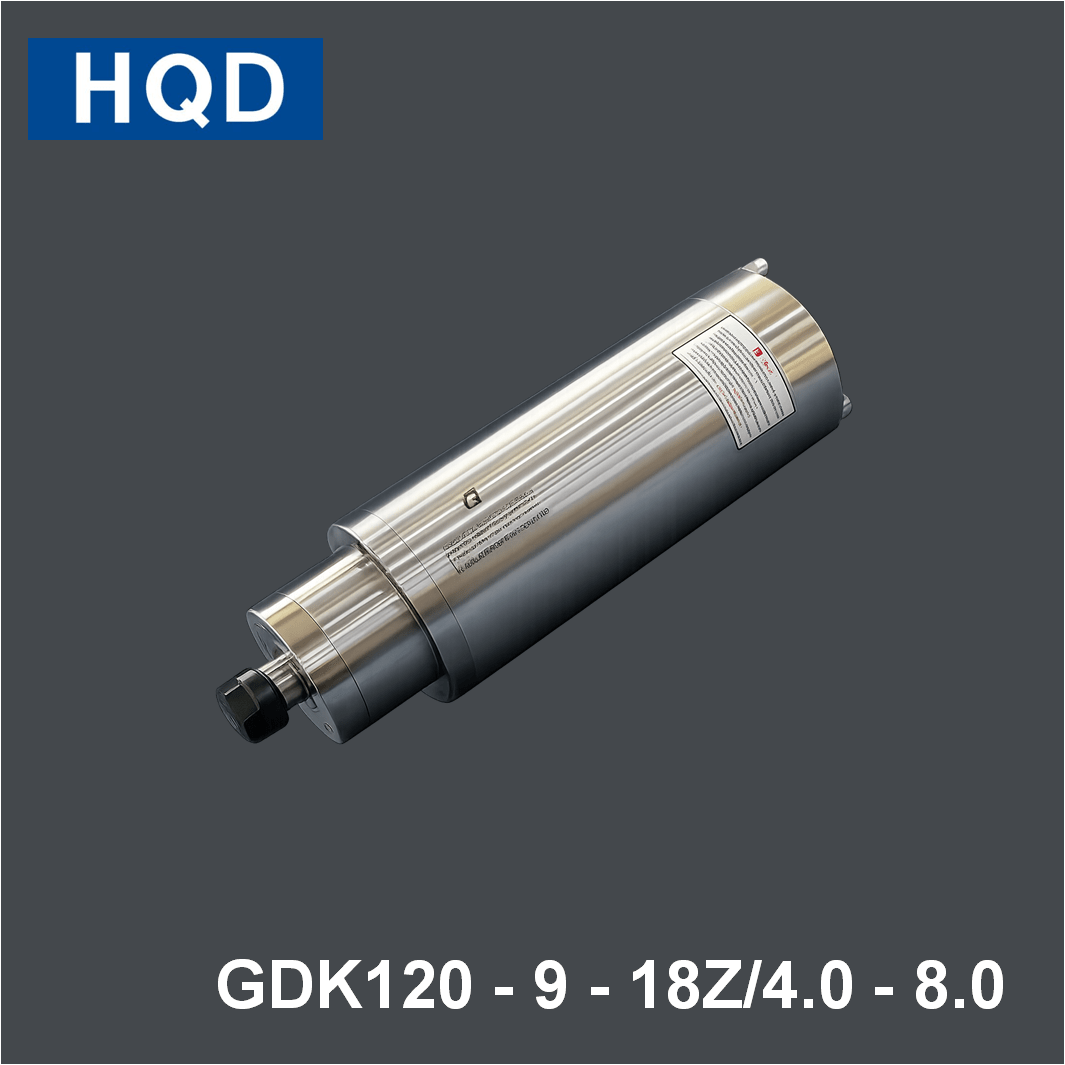

HQD GDK Engraving and Milling Constant Power Electric Spindle GDK120-9-18Z/4.0-8.0

Specifications of HQD GDK Engraving and Milling Constant Power Electric Spindle GDK120-9-18Z/4.0-8.0 are:

Rotating speed: 9000-18000RPM
Rated power: 4.0KW
Torque: 4.24-2.12Nm
Voltage: 269-380V
Current: 12.5A
Frequency: 450-900HZ
Number of poles: 6P
Connection of spindle end: ER25-Φ3.175-Φ16
Cooling: Water cooling
Lubrication: Grease
Bearing No.: 2X7007C P4,2X7005C P4
Weight: 21Kg

Download Outline Diagram for HQD GDK Engraving and Milling Constant Power Electric Spindle GDK120-9-18Z/4.0-8.0
